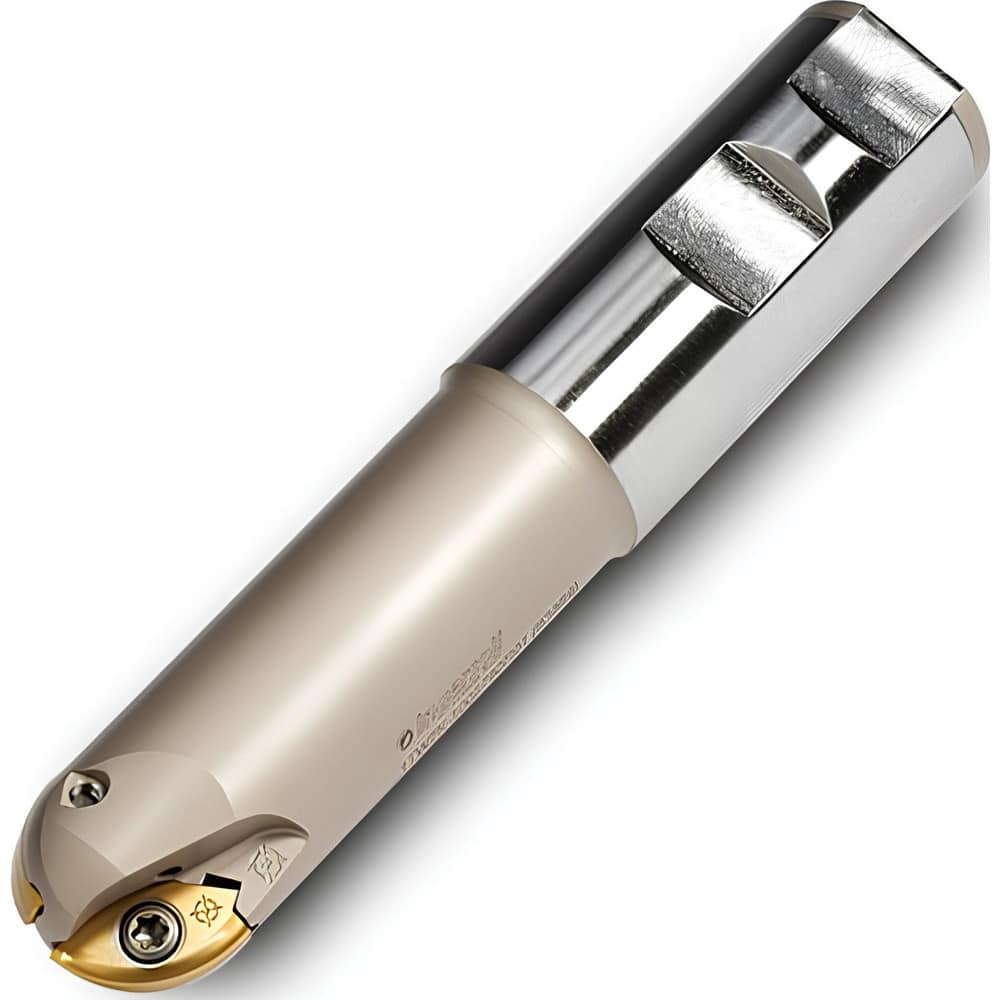

Indexable Ball Nose End Mills; Milling Diameter: 0.6250 in; Maximum Depth Of Cut: 0.4700 in; Shank Diameter: 0.6250 in; Shank Type: Weldon Flat; Compatible Insert Style: NBEU; Compatible Insert Size Code: 1603; Toolholder Style: 1TW7Q; Series: 1TW7; Overa
Item #: 15049943
Brand: Ingersoll Cutting Tools
Model #: 6166349
Product Specifications
| Milling Diameter | 0.6250 in |
| Maximum Depth Of Cut | 0.4700 in |
| Shank Diameter | 0.6250 in |
| Shank Type | Weldon Flat |
| Compatible Insert Style | NBEU |
| Compatible Insert Size Code | 1603 |
| Toolholder Style | 1TW7Q |
| Series | 1TW7 |
| Overall Length (mm) | 1.00 |
| Overall Length (Decimal Inch) | 1.00 |
| Overall Length (Inch) | 1.00 |
| Tool Application | Chamfering; Profile Milling; Milling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | Normal Pressure |
| Tapered Neck | No |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 1.3800 in |
