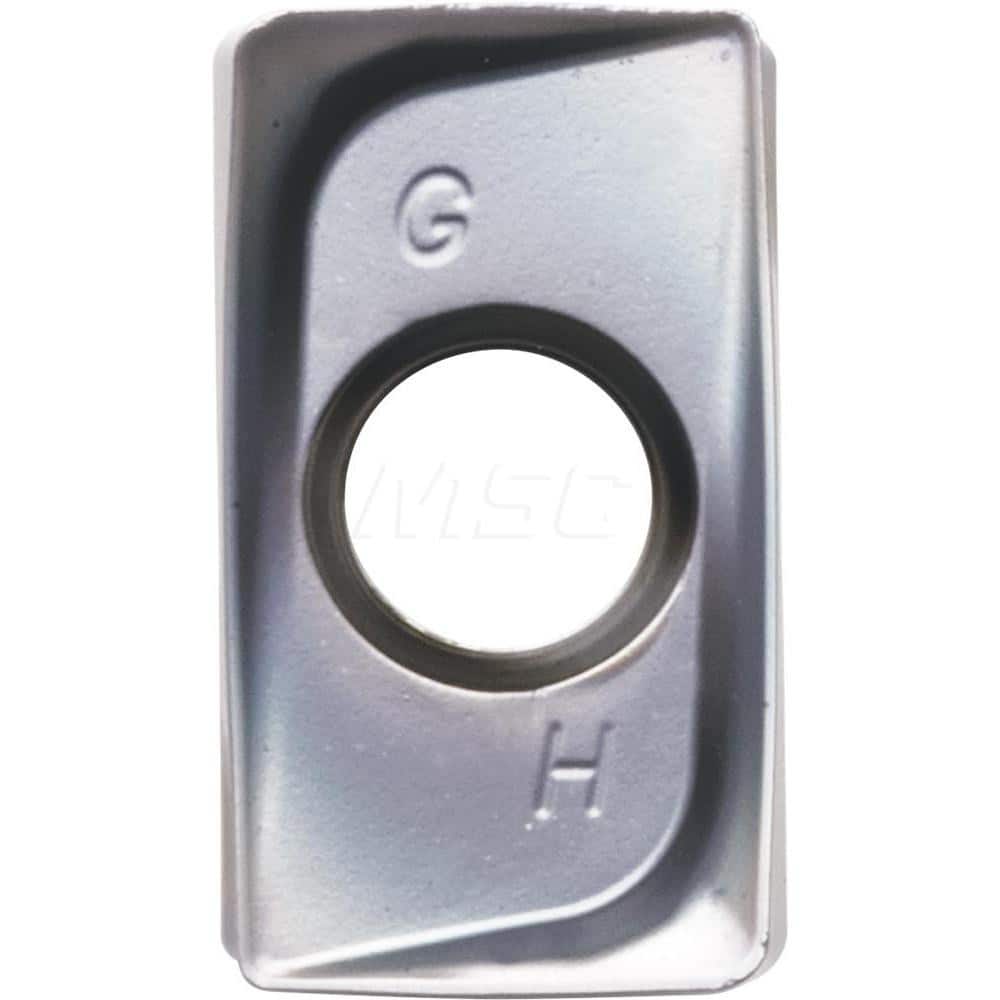

RECT POS RAKE RH Carbide Milling Insert Megacoat Hard Finish, 5.6mm Thick x 9.2mm Wide
Item #: 16390148
Brand: Kyocera
Model #: TLJ59002
Product Specifications
| Insert Style | LOMU |
| Insert Size Code | 150508 |
| Insert Size | 150508 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | PR015S |
| Thickness Range (Decimal Inch) | 0.2200 to 0.2350 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Insert Hand | Right Hand |
| Series | M-FOUR (MEW) |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.80 |
| Hole Diameter (Decimal Inch) | 0.1890 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Rectangle |
| Rake | Positive |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Ansi Code | LOMU150508ERGHPR015S |
| Iso Code | LOMU150508ER-GH |
| Standards | ISO; ANSI |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | LOMU150508ERGHPR015S |
| Chip Breaker | ER-GH |
| Shape | Rectangle |
| Insert Holding Method | Screw |
| Thickness (mm) | 5.60 |
| Coating/Finish | Coated |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.3622 |
| Width (Mm - 2 Decimals) | 9.20 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2205 |
