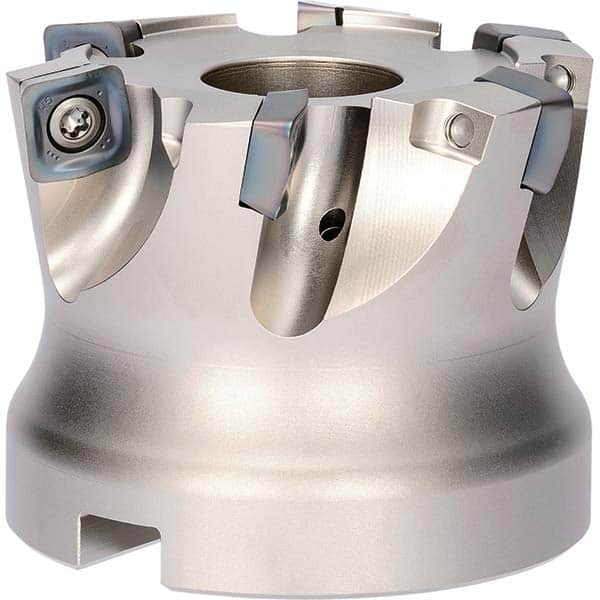

Indexable High-Feed Face Mills; Cutting Diameter (mm): 53.19; Cutting Diameter (Inch): 2.094; Maximum Cutting Diameter: 3 in; Maximum Depth of Cut (mm): 2.00; Maximum Depth of Cut (Decimal Inch): 0.0787; Arbor Hole Diameter (mm): 31.75; Arbor Hole Diamete
Item #: 16390320
Brand: Kyocera
Model #: THN08573
Product Specifications
| Cutting Diameter (mm) | 53.19 |
| Cutting Diameter (Inch) | 2.094 |
| Maximum Cutting Diameter | 3 in |
| Maximum Depth of Cut (mm) | 2.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Arbor Hole Diameter (mm) | 31.75 |
| Arbor Hole Diameter (Decimal Inch) | 1.2500 |
| Overall Height (mm) | 62.99000 |
| Overall Height (Decimal Inch) | 2.4800 |
| Series | MFH-RAPTOR |
| Cutter Style | MFH |
| Number of Cutter Inserts | 6 |
| Insert Compatibility | SOMT14? |
| Maximum Rpm | 6400.000 |
| Tool Application | Facing; Plunging; Ramping; Shouldering; Slotting |
| Cutting Direction | Right Hand |
| Insert Holding Method | Clamp Screw |
| Number of Flutes | 6 |
| Through Coolant | Yes |
| Complete Insert Compatibility | SOMT140520ER-GM, SOMT140520ER-GH, SOMT140520ER-LD, SOMT140514ER-FL |
| Keyway Width (mm) | 12.80 |
| Keyway Width (Decimal Inch) | 0.5040 |
| Manufacturers Catalog Number | MFH3000R146T1250 |
