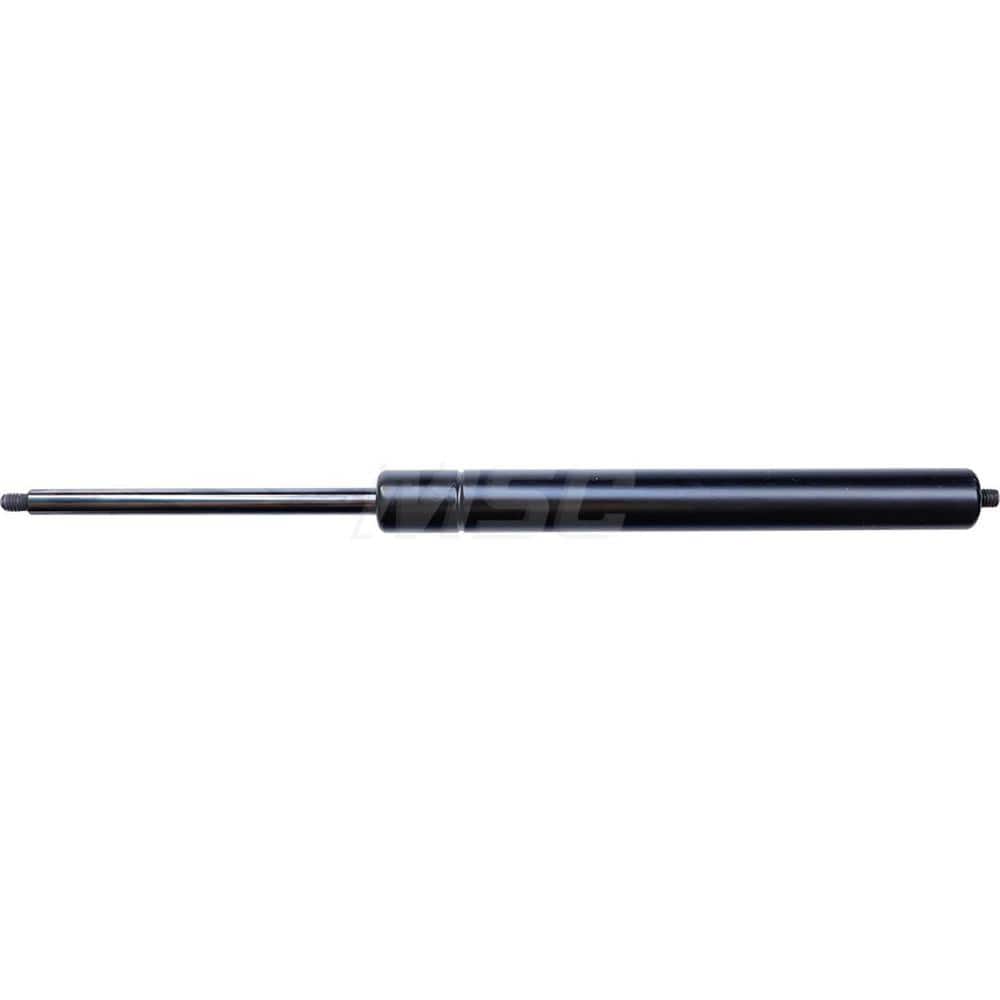

Hydraulic Dampers & Gas Springs; Fitting Type: None; Material: Steel; Extended Length: 15.43; Load Capacity: 20 lbs; Rod Diameter (Decimal Inch): 0.32; Tube Diameter: 0.750; End Fitting Connection: Metal Ball Socket; Compressed Length: 9.93; Extension For
Item #: 17655424
Brand: Normont Gas Springs
Model #: NSG1527M20MT1
Product Specifications
| Fitting Type | None |
| Material | Steel |
| Extended Length | 15.43 |
| Load Capacity | 20 lbs |
| Rod Diameter (Decimal Inch) | 0.32 |
| Tube Diameter | 0.750 |
| End Fitting Connection | Metal Ball Socket |
| Compressed Length | 9.93 |
| Extension Force | 20 |
| Stroke Length | 5.50 |
| Compression Force | 20 |
| Thread Size | M6 |
| Cylinder Diameter | 0.71 |
| Force Mechanism | Compressed Nitrogen Gas |
| Locking | No |
| Adjustable Resistance | No |
| Refillable | No |
| Removable End Fittings | Yes |
