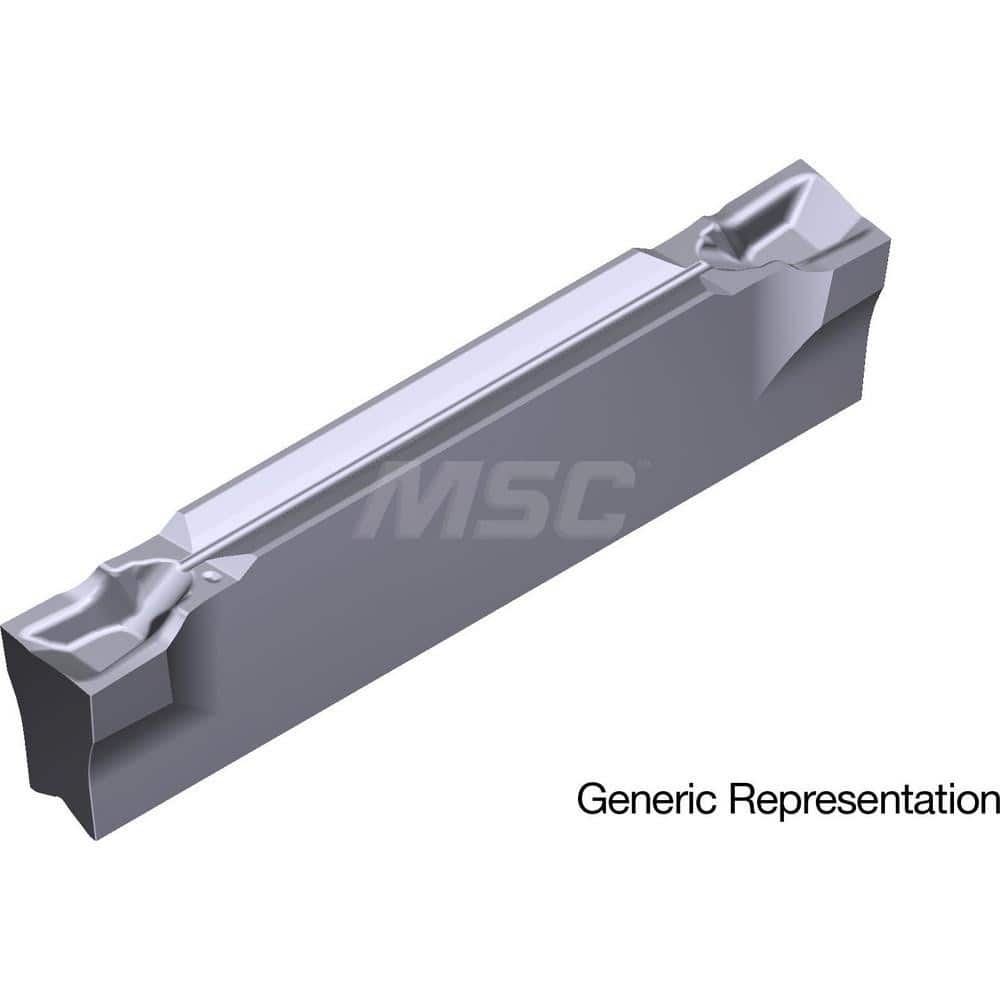

Grooving Insert: GCM30003CF AC5025S, Solid Carbide Absotech Finish, Left Hand, 3 mm Cutting Width, 20 mm Max Depth, Series GND
Item #: 17660481
Brand: Sumitomo
Model #: 18T6APS
Product Specifications
| Insert Style | GCM |
| Insert Size | 30003 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AC5025S |
| Cutting Width (mm) | 3.00 |
| Maximum Depth of Cut (mm) | 20.00 |
| Insert Holding Method | Clamp |
| Cutting Height (mm) | 3.80 |
| Insert Hand | Left Hand |
| Corner Radius (mm) | 0.03 |
| Corner Radius (Decimal Inch) | 0.0012 |
| Maximum Depth Of Cut Range (mm) | 20.00+ |
| Cutting Tool Application | Grooving |
| Series | GND |
| Coating Process | PVD |
| Relief Angle | 7 |
| Manufacturers Catalog Number | GCML30003-CF-10-AC5025S |
| Chip Breaker | CF |
| Coating/Finish | Absotech |
| Number Of Cutting Edges | 2 |
| Insert Thickness | 3.80 |
