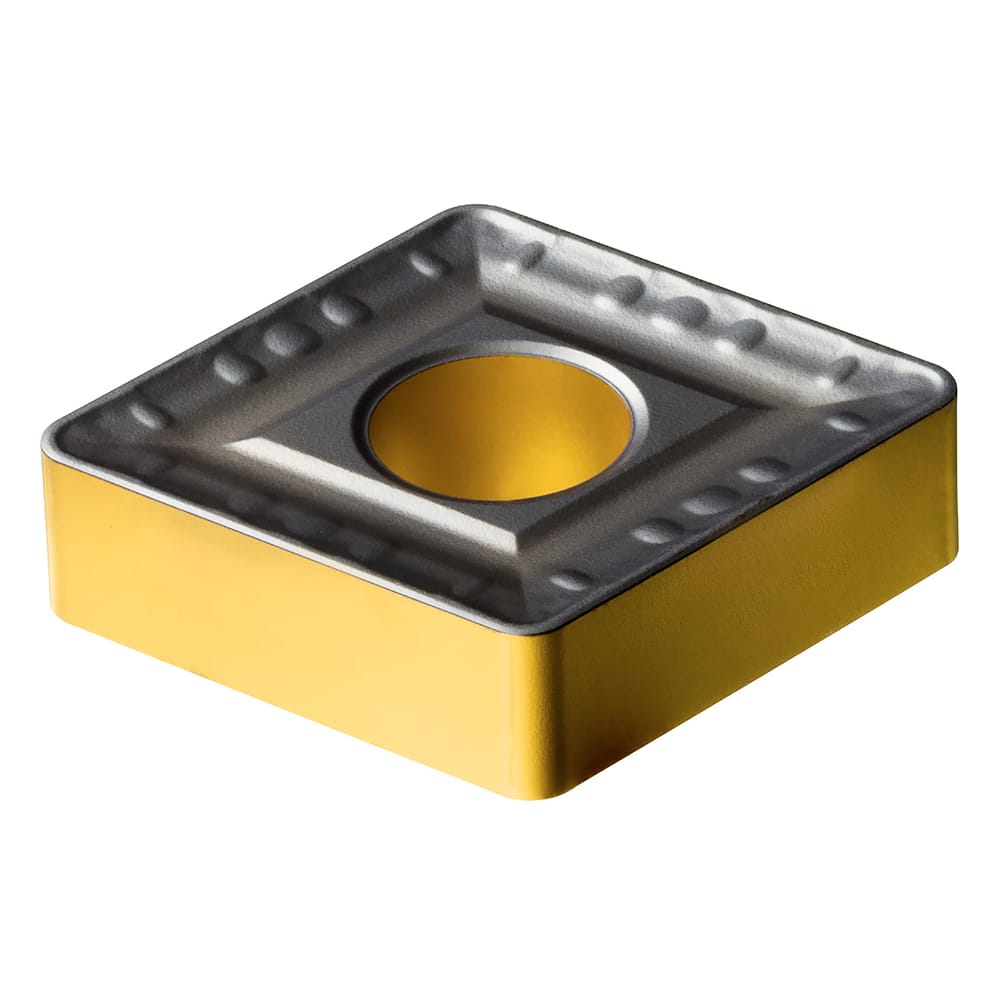

Turning Insert: CNMM 19 06 24-HR 4415, Solid Carbide TiCN, Al2O3 & TiN Finish, Neutral, 0.0938″ Corner Radius, N/A Diamond 80 ™, Series T-Max P
Item #: 17676891
Brand: Sandvik Coromant
Model #: 8021229
Product Specifications
| Insert Style | CNMM |
| Insert Shape Code | C |
| Insert Size Code | 1906 |
| Insert Shape | Diamond 80? |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | 4415 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Decimal Inch) | 0.0938 |
| Relief Angle | 0 |
| Series | T-Max P |
| Coating Process | CVD |
| Primary Workpiece Material | Steel |
| Secondary Workpiece Material | Cast Iron |
| Iso Code | CNMM 19 06 24-HR 4415 |
| Manufacturers Catalog Number | CNMM 19 06 24-HR 4415 |
| Chip Breaker | HR |
| Coating/Finish | TiCN; TiN; Al2O3 |
