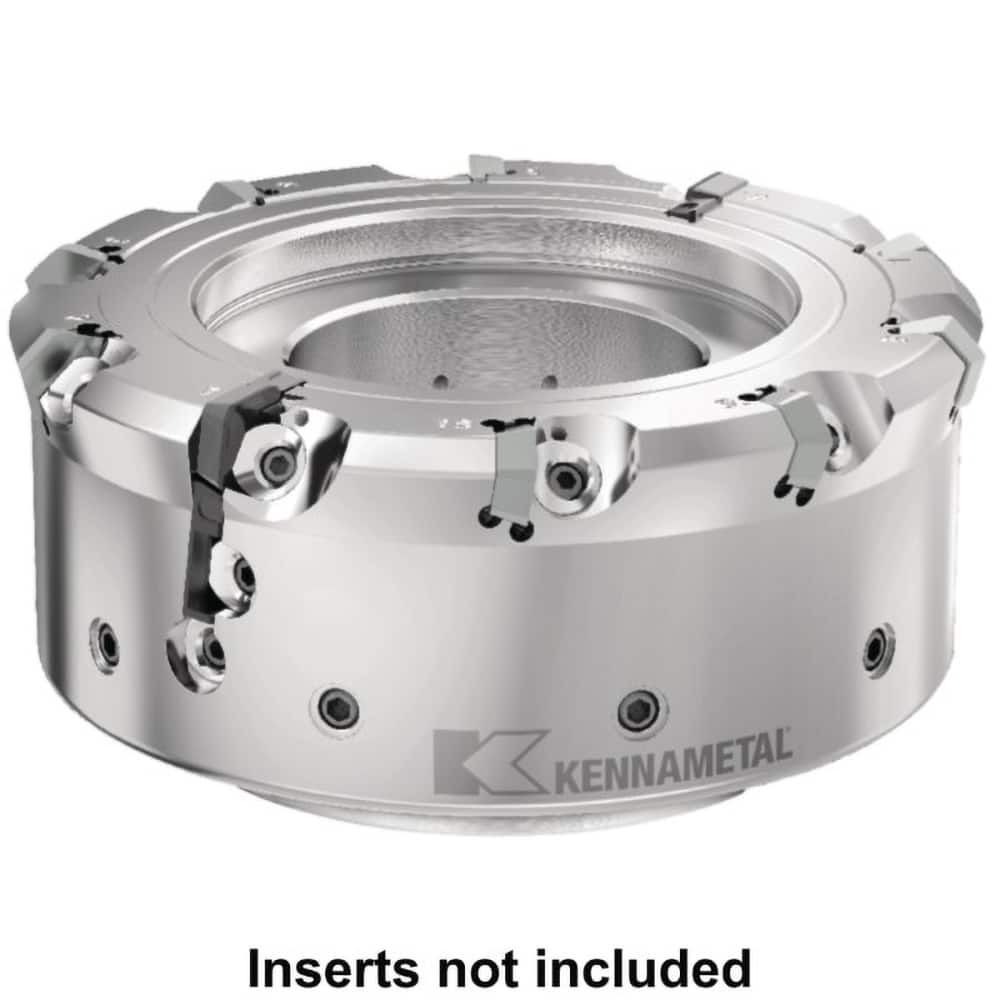

Indexable High-Feed Face Mills; Cutting Diameter (mm): 101.6000; Cutting Diameter (Inch): 4.0000; Maximum Depth of Cut (mm): 1.0900; Maximum Depth of Cut (Decimal Inch): 0.0430; Shank Diameter (Inch): 1.2500; Shank Diameter (mm): 31.8000; Series: KCFM; Cu
Item #: 17694282
Brand: Kennametal
Model #: 6764352
Product Specifications
| Cutting Diameter (mm) | 101.6000 |
| Cutting Diameter (Inch) | 4.0000 |
| Maximum Depth of Cut (mm) | 1.0900 |
| Maximum Depth of Cut (Decimal Inch) | 0.0430 |
| Shank Diameter (Inch) | 1.2500 |
| Shank Diameter (mm) | 31.8000 |
| Series | KCFM |
| Cutter Style | Shell Mill |
| Number of Cutter Inserts | 8 |
| Insert Compatibility | HDHN070408SR; SDHN1204ZZSN4W |
| Maximum Rpm | 8400 |
| Cutting Direction | Right |
| Number of Flutes | 8 |
| Maximum Body Diameter (mm) | 108.6000 |
| Maximum Body Diameter (Decimal Inch) | 4.2760 |
| Complete Insert Compatibility | HDHN070408SR; SDHN1204ZZSN4W |
| Manufacturers Catalog Number | KCFM400R08HD07W2AS |
