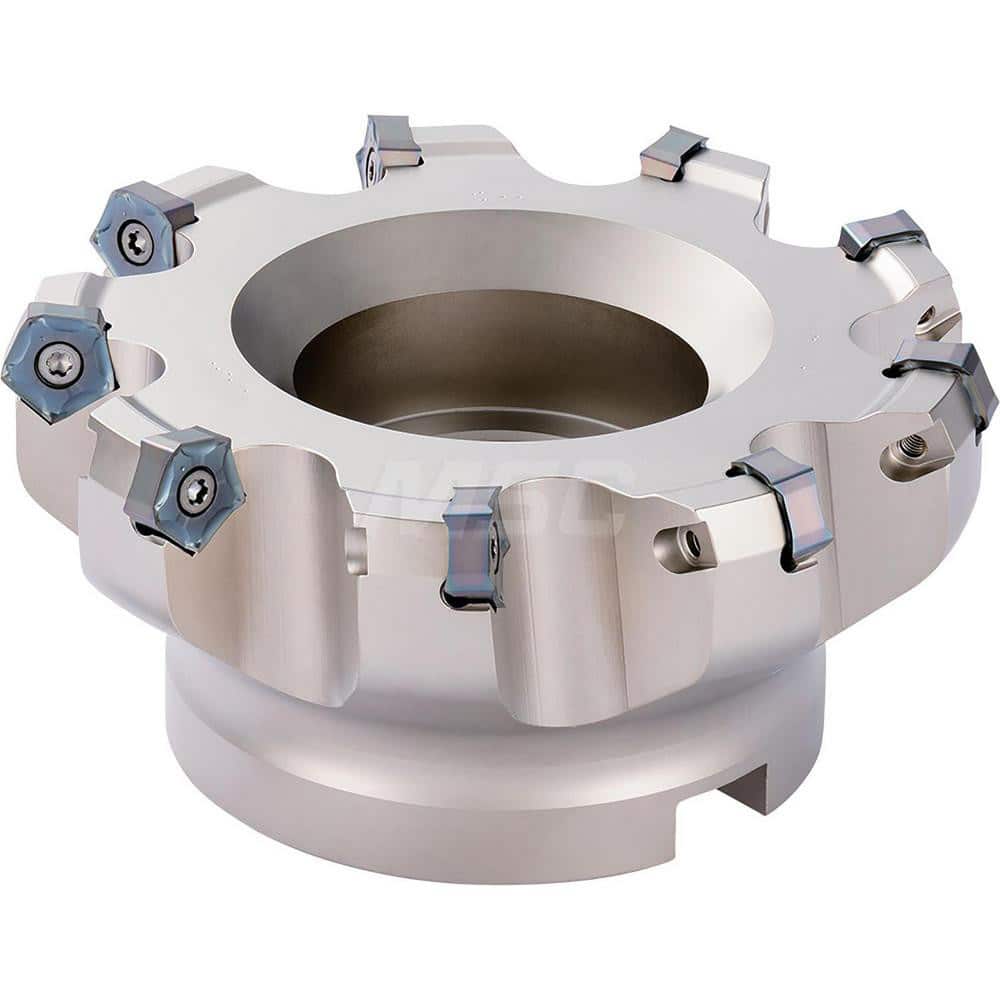

Kyocera MFPN 66125R13TMG Metric Bore Diameter, Extra Fine Pitch, 13 Flute, 66 Degree Face Mill with a 125.00mm Cutting Diameter for Facing Applications
Item #: 18241232
Brand: Kyocera
Model #: THN08404
Product Specifications
| Minimum Cutting Diameter (mm) | 125.00 |
| Maximum Cutting Diameter (mm) | 132.00 |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Arbor Hole Diameter (mm) | 40.00 |
| Lead Angle | 66 |
| Compatible Insert Size Code | PNMU0905XNER-GM; PNMU0905XNER-SM; PNMU0905XNER-GH |
| Cutter Style | MFPN |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Rake | Negative (Radial); Positive (Axial) |
| Rake Angle | +12 (Axial) |
| Series | MFPN |
| Hub Diameter (Decimal Inch) | 5.1969 |
| Keyway Width (Decimal Inch) | 0.6457 |
| Overall Height (Mm - 5 Decimals) | 63.00 |
| Counterbore Diameter (Decimal Inch) | 2.1654 |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | MFPN66125R13TMG |
| Number Of Cutter Inserts | 13 |
| Coolant Through | No |
| Number Of Flutes | 13 |
