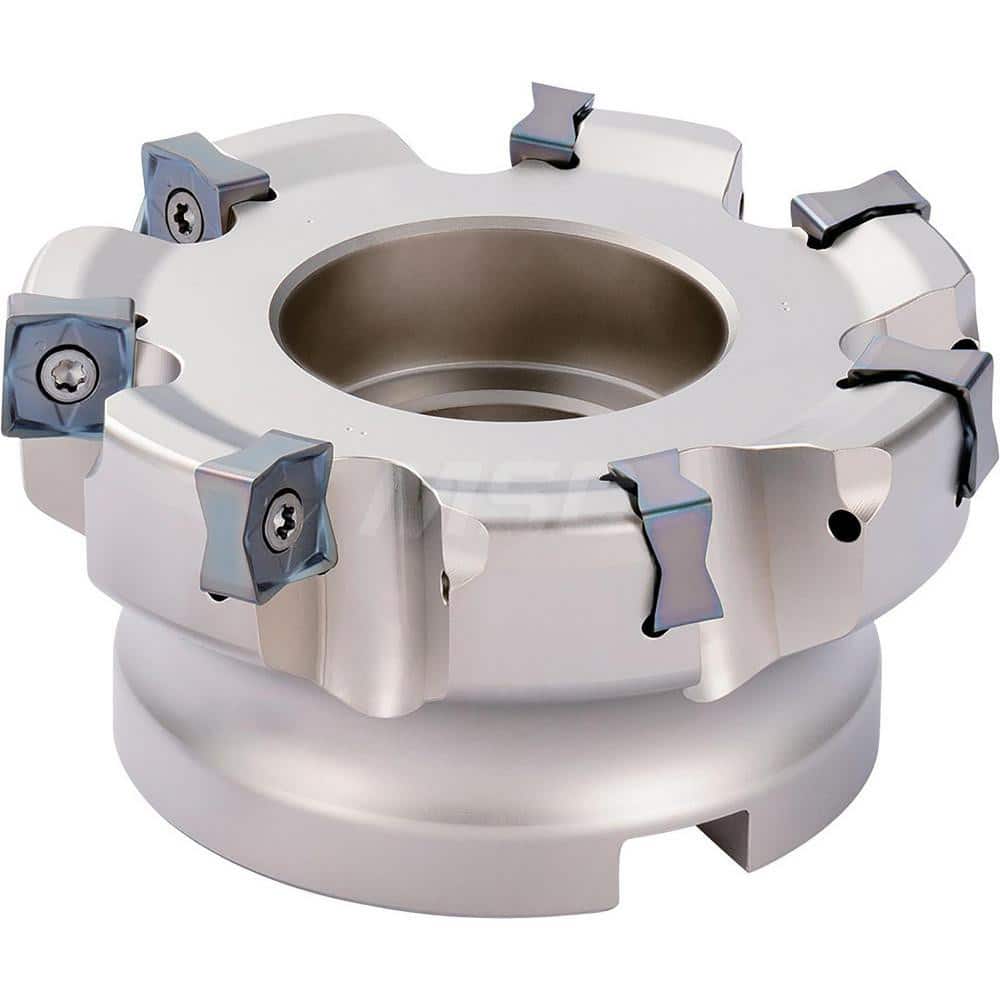

Kyocera MFSN 88063R5TMG Metric Bore Diameter, Fine Pitch, 5 Flute, 88 Degree Face Mill with a 63.00mm Cutting Diameter for Facing Applications
Item #: 18242032
Brand: Kyocera
Model #: THN08417
Product Specifications
| Minimum Cutting Diameter (mm) | 63.00 |
| Maximum Cutting Diameter (mm) | 65.00 |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Arbor Hole Diameter (mm) | 22.00 |
| Lead Angle | 88 |
| Compatible Insert Size Code | SNMU130508EN-GH; SNMU130508EN-GM; SNMU130508EN-SM |
| Cutter Style | MFSN |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Rake | Negative (Radial); Positive (Axial) |
| Rake Angle | +10 (Axial) |
| Series | MFSN |
| Hub Diameter (Decimal Inch) | 2.5591 |
| Keyway Width (Decimal Inch) | 0.4094 |
| Overall Height (Mm - 5 Decimals) | 40.00 |
| Counterbore Diameter (Decimal Inch) | 0.7087 |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | MFSN88063R5TMG |
| Number Of Cutter Inserts | 5 |
| Coolant Through | No |
| Number Of Flutes | 5 |
