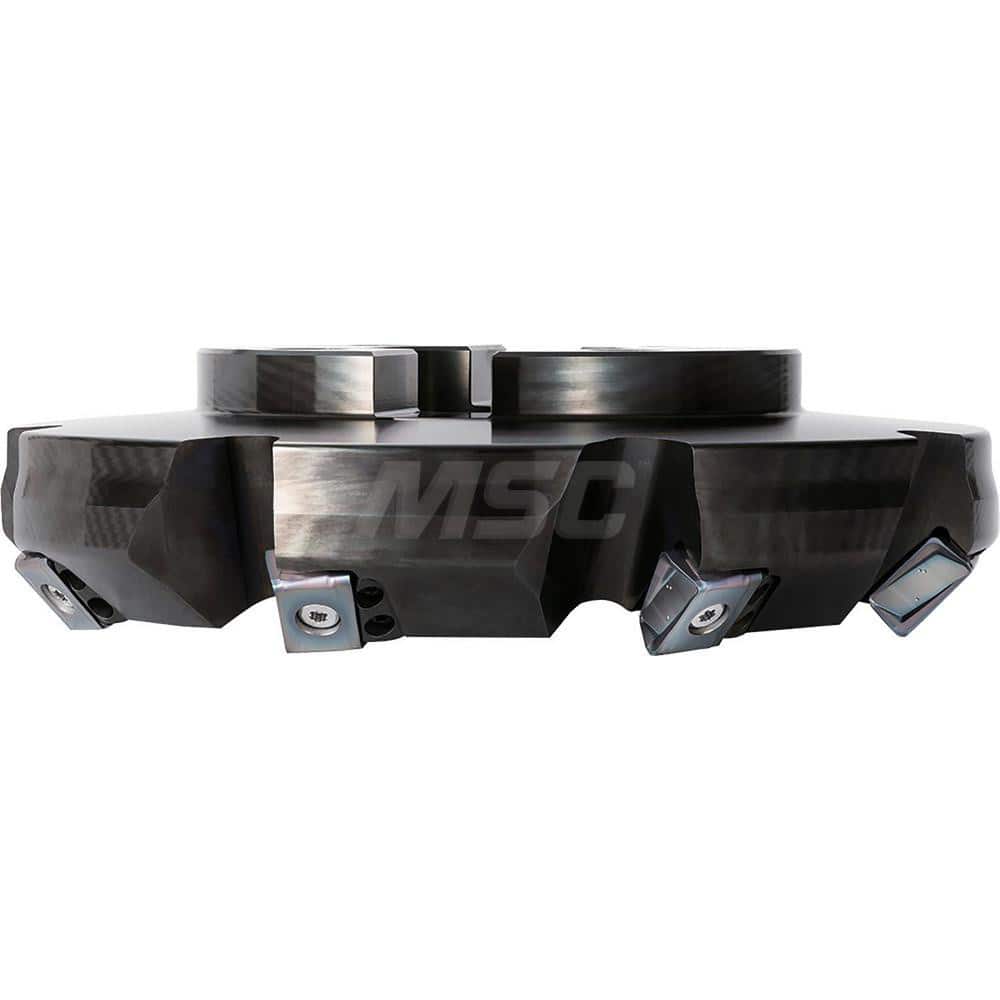

Kyocera MECH T50R171134TM (MEC Series), Coolant-Through Helical Shell Mill with a 50.00mm Cutting Diameter for Shouldering, Slotting, Facing Applications
Item #: 18288324
Brand: Kyocera
Model #: THN08504
Product Specifications
| Maximum Cutting Diameter (mm) | 50.00 |
| Maximum Depth of Cut (mm) | 34.00 |
| Arbor Hole Diameter (mm) | 27.00 |
| Arbor Hole Diameter (Inch) | 27 |
| Arbor Hole Diameter (Decimal Inch) | 27.0000 |
| Compatible Insert Size Code | BDMT11T308? (2nd Stage & Above); BDMT1704? (1st Stage) |
| Cutter Style | Helical |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Series | MEC |
| Overall Height (Mm - 5 Decimals) | 55.00 |
| Keyway Width (Decimal Inch) | 0.4882 |
| Hub Diameter (Decimal Inch) | 1.9685 |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | MECHT50R171134TM |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 12 |
| Number Of Flutes | 4 |
