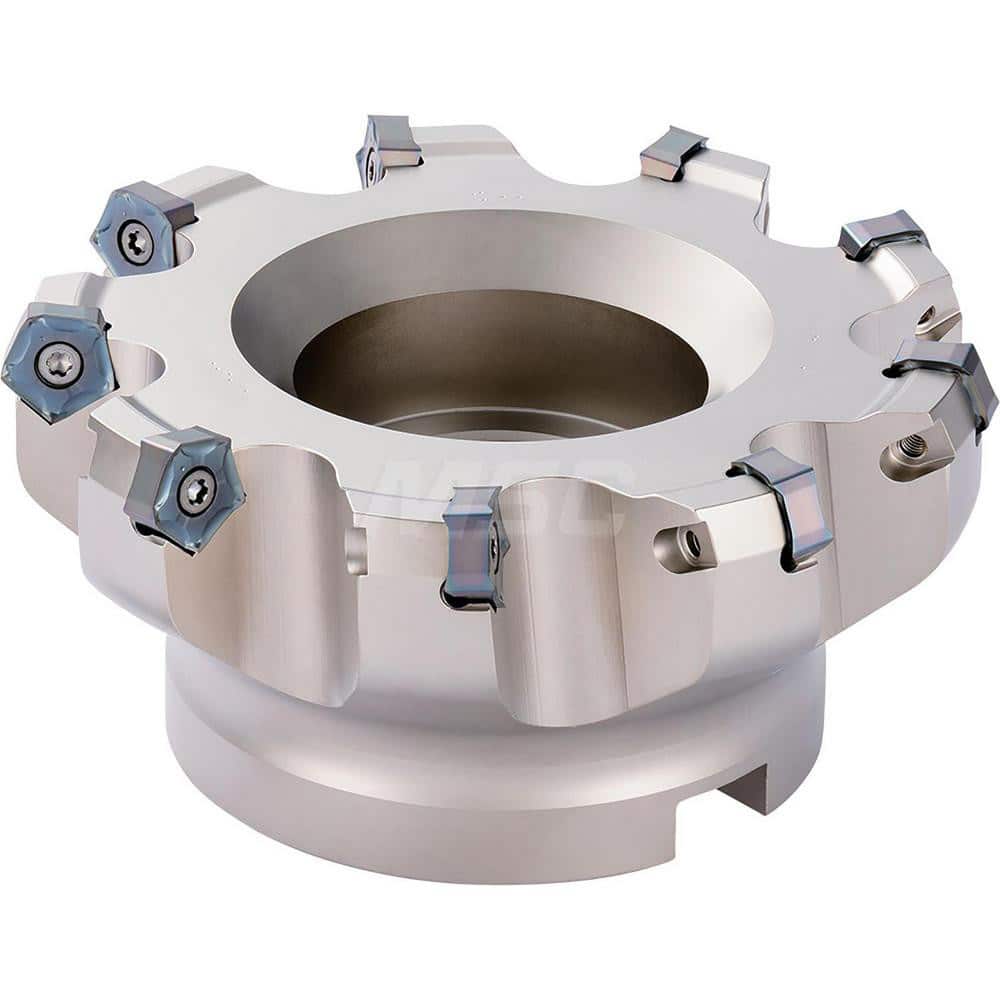

Kyocera MFLN 90100R4T Inch Bore Diameter, Standard Pitch, 4 Flute, 90 Degree Face Mill with a 100.00mm Cutting Diameter for Shouldering, Facing Applications
Item #: 18288951
Brand: Kyocera
Model #: THN08437
Product Specifications
| Maximum Cutting Diameter (mm) | 100.00 |
| Maximum Depth of Cut (mm) | 20.00 |
| Arbor Hole Diameter (mm) | 31.75 |
| Arbor Hole Diameter (Inch) | 31-3/4 |
| Arbor Hole Diameter (Decimal Inch) | 31.7500 |
| Compatible Insert Size Code | LOGU221616ER-GM; LOGU2216PAER-GM |
| Cutter Style | Tangential |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Series | MFLN |
| Overall Height (Mm - 5 Decimals) | 50.00 |
| Keyway Width (Inch) | 1/2 |
| Hub Diameter (mm) | 2.76 |
| Hub Diameter (Decimal Inch) | 2.7600 |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | MFLN90100R4T |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 4 |
| Number Of Flutes | 4 |
