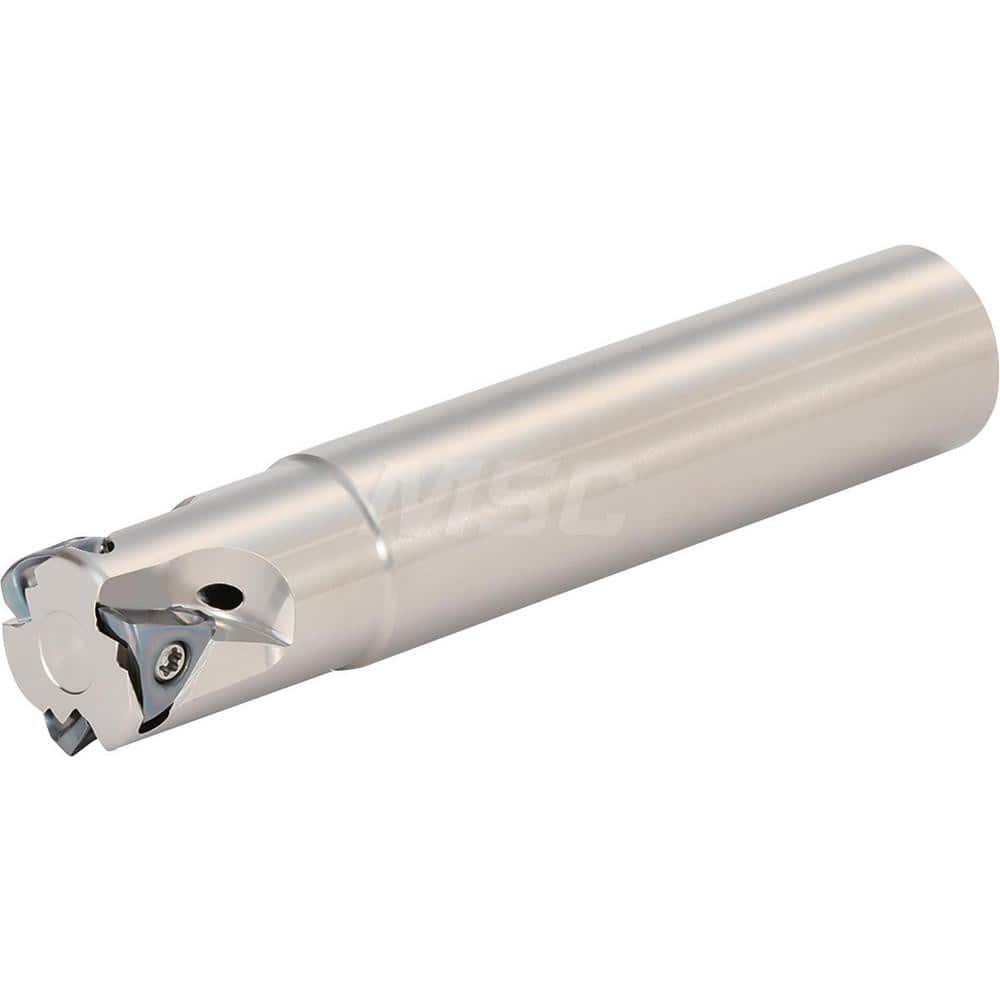

Indexable Square-Shoulder End Mill: MEV22S20063T, 0.8661'' Cut Dia, Cylindrical Shank Uses 3, Through Coolant, 110.00 mm OAL
Item #: 18289462
Brand: Kyocera
Model #: THN08479
Product Specifications
| Maximum Cutting Diameter (Decimal Inch) | 0.8661 |
| Maximum Cutting Diameter (mm) | 22.00 |
| Maximum Depth of Cut (mm) | 6.00 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 20.00 |
| Insert Holding Method | Screw |
| Overall Length (mm) | 110.00 |
| Tool Material | Steel |
| Series | MEV |
| Lead Angle | 90 |
| Head Length (mm) | 26.00 |
| Maximum RPM | 29000 |
| Complete Insert Compatibility | TOMT06? |
| MSC/Manufacturer Number | MEV22S20063T |
| Hand of Holder | Right |
| Multi-Use Tool | Yes |
| ISO Number | MEV22-S20-06-3T |
| Manufacturers Catalog Number | MEV22S20063T |
| Number Of Flutes | 3 |
| Number Of Cutter Inserts | 3 |
| Coolant Through | Yes |
