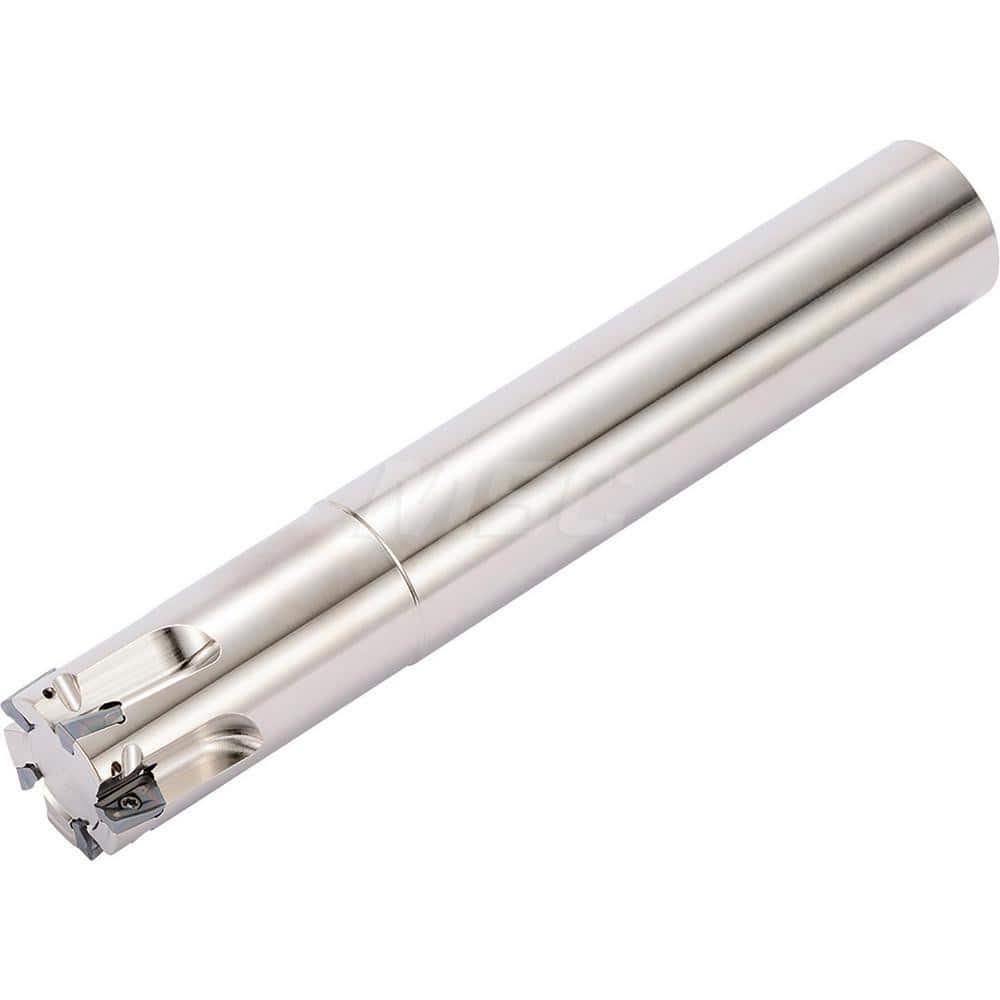

Indexable Square-Shoulder End Mill: MEC32S3220011T3, 1.2598'' Cut Dia, Cylindrical Shank Uses 3, Through Coolant, 200.00 mm OAL
Item #: 18289942
Brand: Kyocera
Model #: THN03319
Product Specifications
| Maximum Cutting Diameter (Decimal Inch) | 1.2598 |
| Maximum Cutting Diameter (mm) | 32.00 |
| Maximum Depth of Cut (mm) | 10.00 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 32.00 |
| Insert Holding Method | Screw |
| Overall Length (mm) | 200.00 |
| Tool Material | Steel |
| Series | MEC |
| Lead Angle | 90 |
| Head Length (mm) | 65.00 |
| Maximum RPM | 33900 |
| Complete Insert Compatibility | BDMT11T3?ER-JS; BDMT11T3?FR; BDMT11T3?ER-JT; BDGT11T3?FR-JA BDGT11T3?FR? |
| MSC/Manufacturer Number | MEC32S3220011T3 |
| Hand of Holder | Right |
| Multi-Use Tool | Yes |
| ISO Number | MEC32-S32-200-11T-3 |
| Manufacturers Catalog Number | MEC32S3220011T3 |
| Number Of Flutes | 3 |
| Number Of Cutter Inserts | 3 |
| Coolant Through | Yes |
