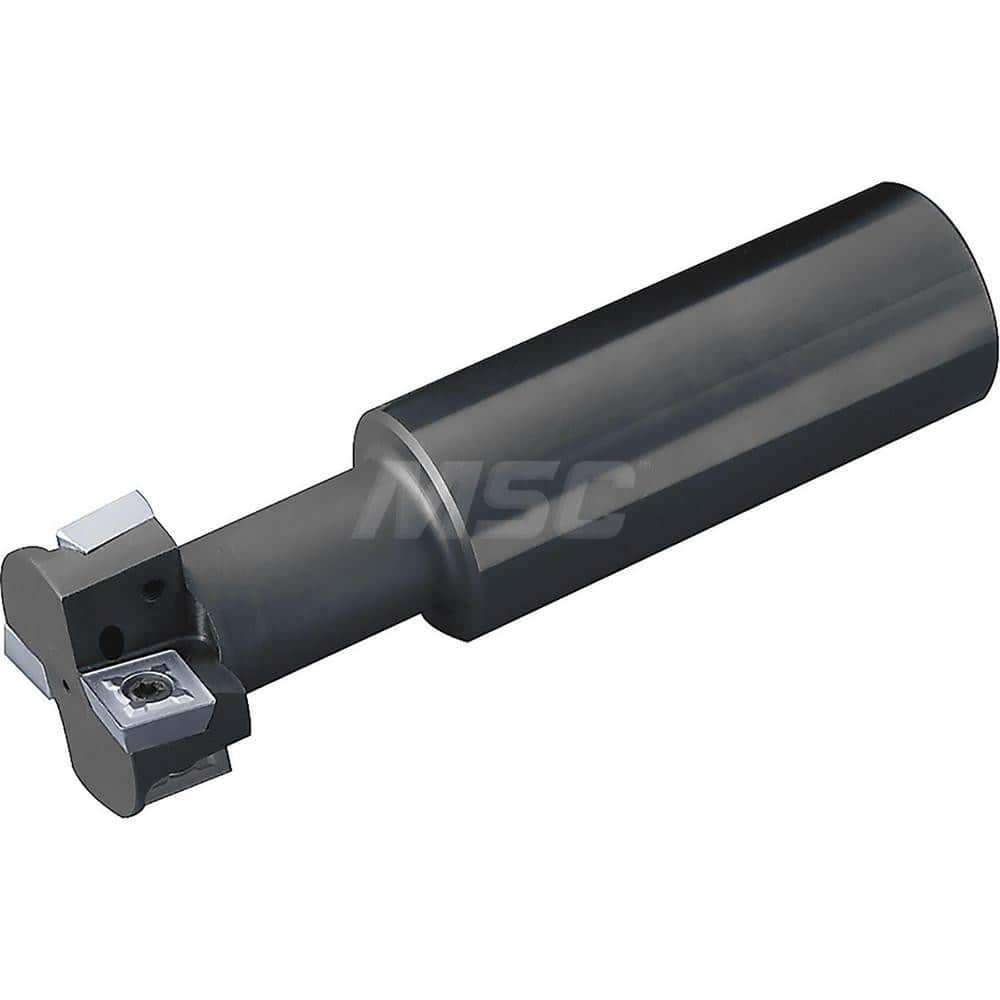

Indexable T-Slot Cutters; Cutting Diameter (mm): 25.00; T Slot Bolt Size (mm): 12.00; T-Slot Bolt Size (Inch): 1/2; Cutting Width (mm): 11.000; Shank Diameter (mm): 25.0000; Number of Cutter Inserts: 2; Toolholder Style: METS; Insert Style: SDMT221E-K; St
Item #: 18290395
Brand: Kyocera
Model #: THN02306
Product Specifications
| Cutting Diameter (mm) | 25.00 |
| T Slot Bolt Size (mm) | 12.00 |
| T-Slot Bolt Size (Inch) | 1/2 |
| Cutting Width (mm) | 11.000 |
| Shank Diameter (mm) | 25.0000 |
| Number of Cutter Inserts | 2 |
| Toolholder Style | METS |
| Insert Style | SDMT221E-K |
| Staggered Tooth | No |
| Number of Flutes | 1 |
| Neck Diameter (Decimal Inch) | 0.4921 |
| Neck Length (Decimal Inch) | 0.5512 |
| Shank Length (mm) | 87.000 |
| Overall Length (mm) | 112.0000 |
| Maximum Reach (mm) | 25.00 |
| Insert Holding Method | Screw |
| Weldon Flat | Yes |
| Toolholder Material | Steel |
| Complete Insert Compatibility | SDMT221E-K |
| Manufacturers Catalog Number | METS25S25 |
