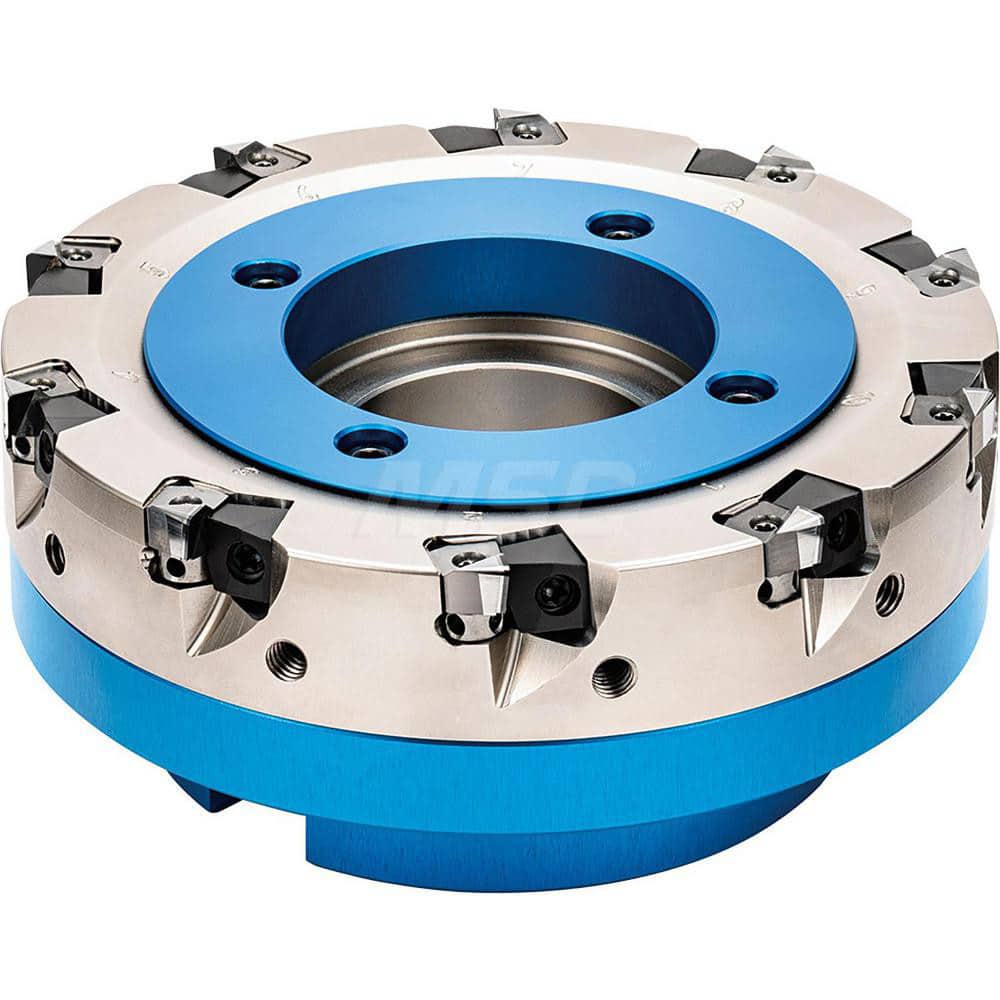

Kyocera MFAH 125RA10TSF Inch Bore Diameter, Standard Pitch, 10 Flute, 90 Degree Face Mill with a 125.00mm Cutting Diameter for Aluminum Facing, Finishing Applications
Item #: 18290759
Brand: Kyocera
Model #: THN08374
Product Specifications
| Maximum Cutting Diameter (mm) | 125.00 |
| Maximum Depth of Cut (mm) | 4.60 |
| Arbor Hole Diameter (Inch) | 1-1/2 |
| Compatible Insert Size Code | ENET0905? |
| Cutter Style | Aluminum Facing or Finishing |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw Clamping |
| Lead Angle | 90 |
| Series | MFAH |
| Overall Height (Mm - 5 Decimals) | 55.00 |
| Keyway Width (Inch) | 5/8 |
| Hub Diameter (mm) | 3.50 |
| Hub Diameter (Decimal Inch) | 3.5000 |
| Hub Diameter (Inch) | 3-1/2 |
| Maximum RPM | 11400 |
| Toolholder Material | Aluminum; Steel |
| Manufacturers Catalog Number | MFAH125RA10TSF |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 10 |
| Number Of Flutes | 10 |
