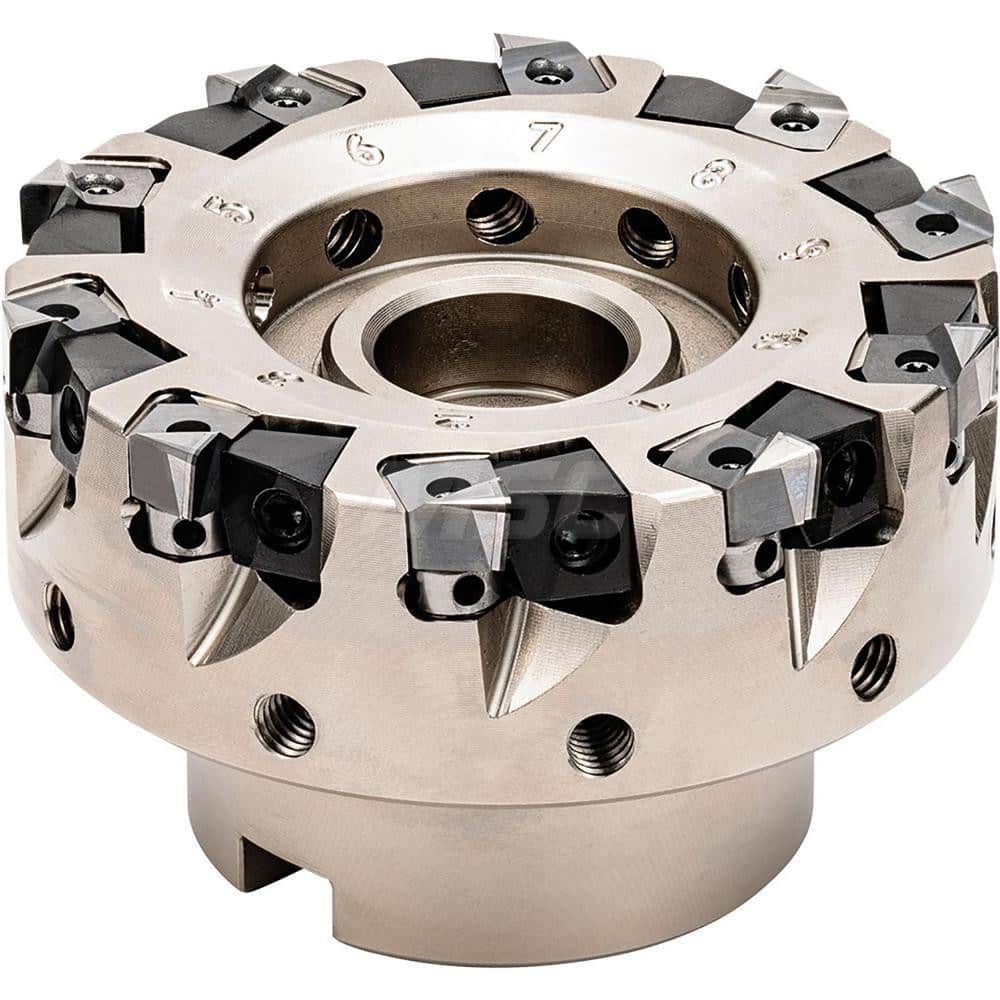

Kyocera MFAH 100RS8TSF Inch Bore Diameter, Standard Pitch, 8 Flute, 90 Degree Face Mill with a 100.00mm Cutting Diameter for Aluminum Facing, Finishing Applications
Item #: 18290999
Brand: Kyocera
Model #: THN08278
Product Specifications
| Maximum Cutting Diameter (mm) | 100.00 |
| Maximum Depth of Cut (mm) | 4.60 |
| Arbor Hole Diameter (mm) | 31.75 |
| Arbor Hole Diameter (Inch) | 31-3/4 |
| Arbor Hole Diameter (Decimal Inch) | 31.7500 |
| Compatible Insert Size Code | ENET0905? |
| Cutter Style | Aluminum Facing or Finishing |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw Clamping |
| Lead Angle | 90 |
| Series | MFAH |
| Overall Height (Mm - 5 Decimals) | 50.00 |
| Keyway Width (Inch) | 1/2 |
| Hub Diameter (mm) | 2.76 |
| Hub Diameter (Decimal Inch) | 2.7600 |
| Maximum RPM | 13000 |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | MFAH100RS8TSF |
| Coolant Through | No |
| Number Of Cutter Inserts | 8 |
| Number Of Flutes | 8 |
