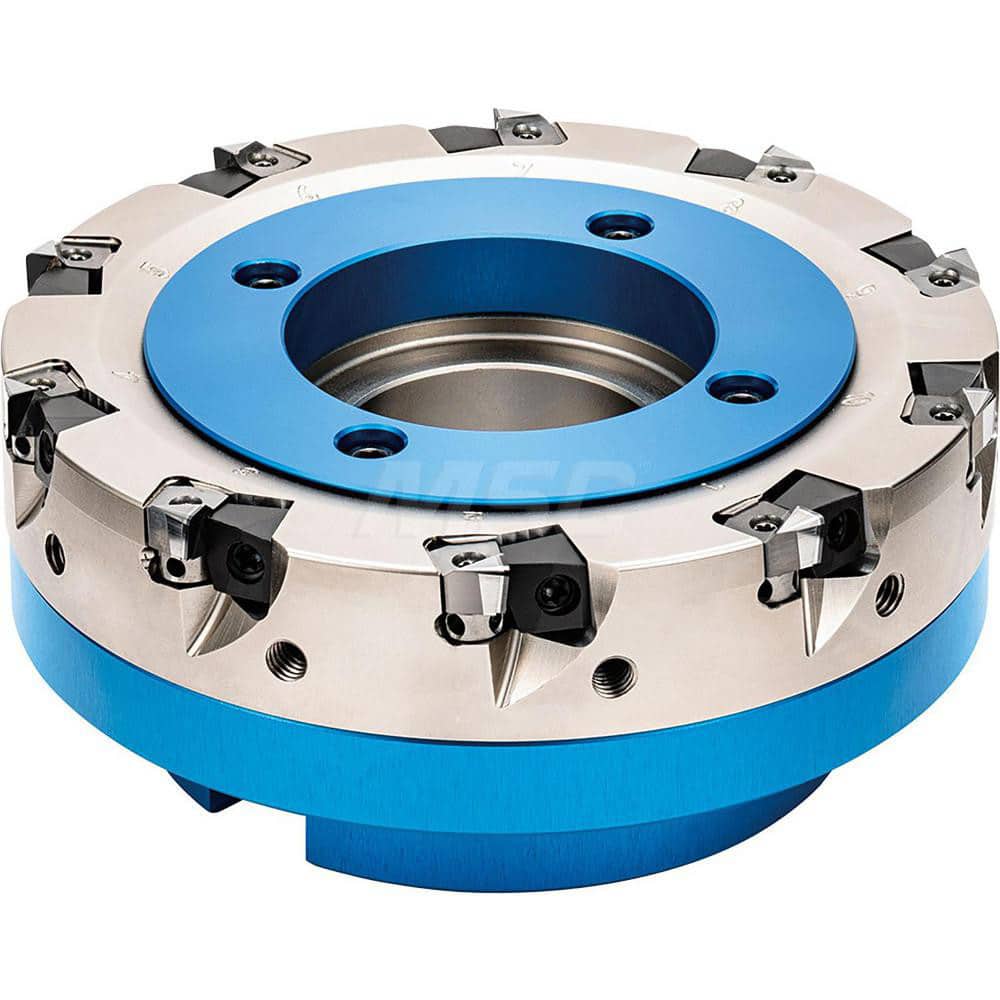

Kyocera MFAH 100RA8TMSF Metric Bore Diameter, Standard Pitch, 8 Flute, 90 Degree Face Mill with a 100.00mm Cutting Diameter for Aluminum Facing, Finishing Applications
Item #: 18291195
Brand: Kyocera
Model #: THN08352
Product Specifications
| Maximum Cutting Diameter (mm) | 100.00 |
| Maximum Depth of Cut (mm) | 4.60 |
| Arbor Hole Diameter (mm) | 32.00 |
| Arbor Hole Diameter (Inch) | 32 |
| Arbor Hole Diameter (Decimal Inch) | 32.0000 |
| Compatible Insert Size Code | ENET0905? |
| Cutter Style | Aluminum Facing or Finishing |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw Clamping |
| Lead Angle | 90 |
| Series | MFAH |
| Overall Height (Mm - 5 Decimals) | 50.00 |
| Keyway Width (Decimal Inch) | 0.5669 |
| Hub Diameter (mm) | 3.35 |
| Hub Diameter (Decimal Inch) | 3.3500 |
| Maximum RPM | 13000 |
| Toolholder Material | Aluminum; Steel |
| Manufacturers Catalog Number | MFAH100RA8TMSF |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 8 |
| Number Of Flutes | 8 |
