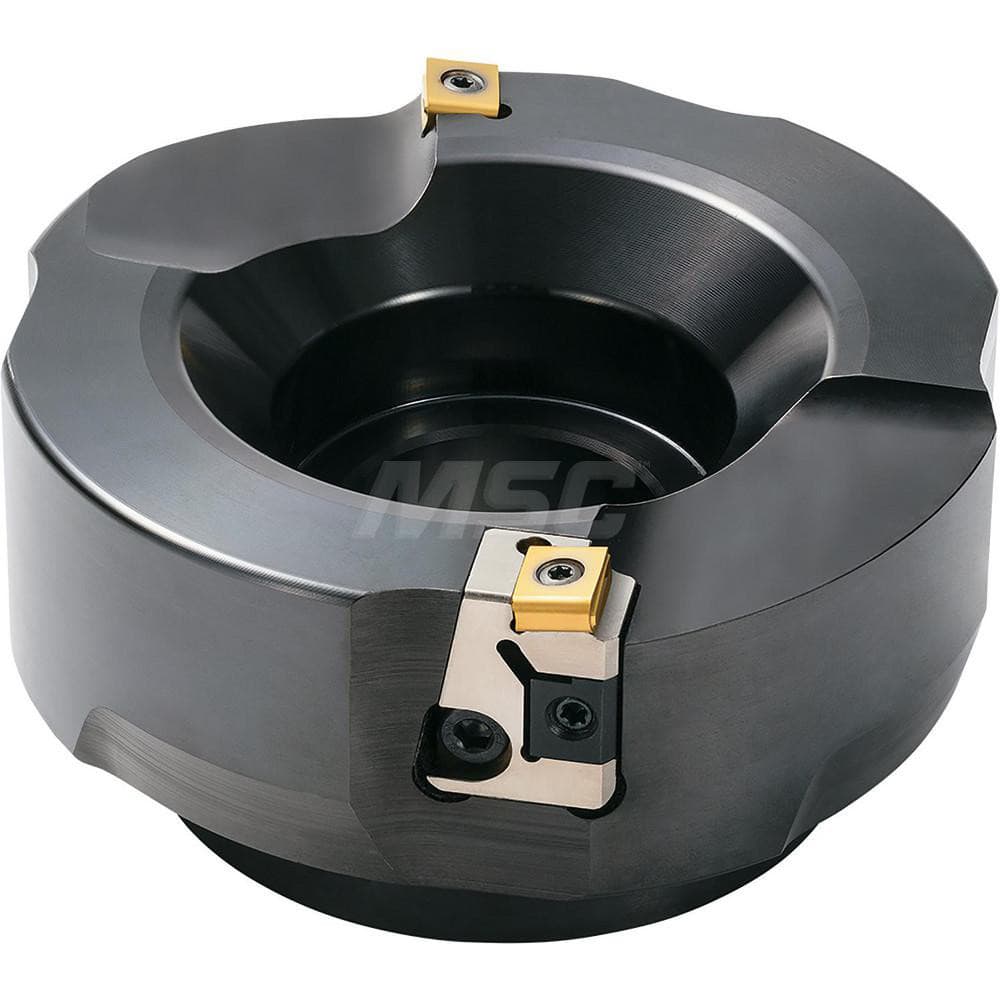

Kyocera MFF 160RMSF Metric Bore Diameter, Standard Pitch, 2 Flute , 90 Degree Face Mill with a 147.30mm Cutting Diameter for Finish Milling
Item #: 18291781
Brand: Kyocera
Model #: THN08548
Product Specifications
| Maximum Cutting Diameter (mm) | 160.00 |
| Maximum Depth of Cut (mm) | 0.30 |
| Arbor Hole Diameter (mm) | 40.00 |
| Arbor Hole Diameter (Inch) | 40 |
| Arbor Hole Diameter (Decimal Inch) | 40.0000 |
| Compatible Insert Size Code | LNGX120916? |
| Cutter Style | Finishing Mill |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Series | MFF |
| Overall Height (Mm - 5 Decimals) | 63.00 |
| Keyway Width (Decimal Inch) | 0.6457 |
| Hub Diameter (Decimal Inch) | 4.0157 |
| Maximum RPM | 1000 |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | MFF160RMSF |
| Coolant Through | No |
| Number Of Cutter Inserts | 2 |
| Number Of Flutes | 2 |
