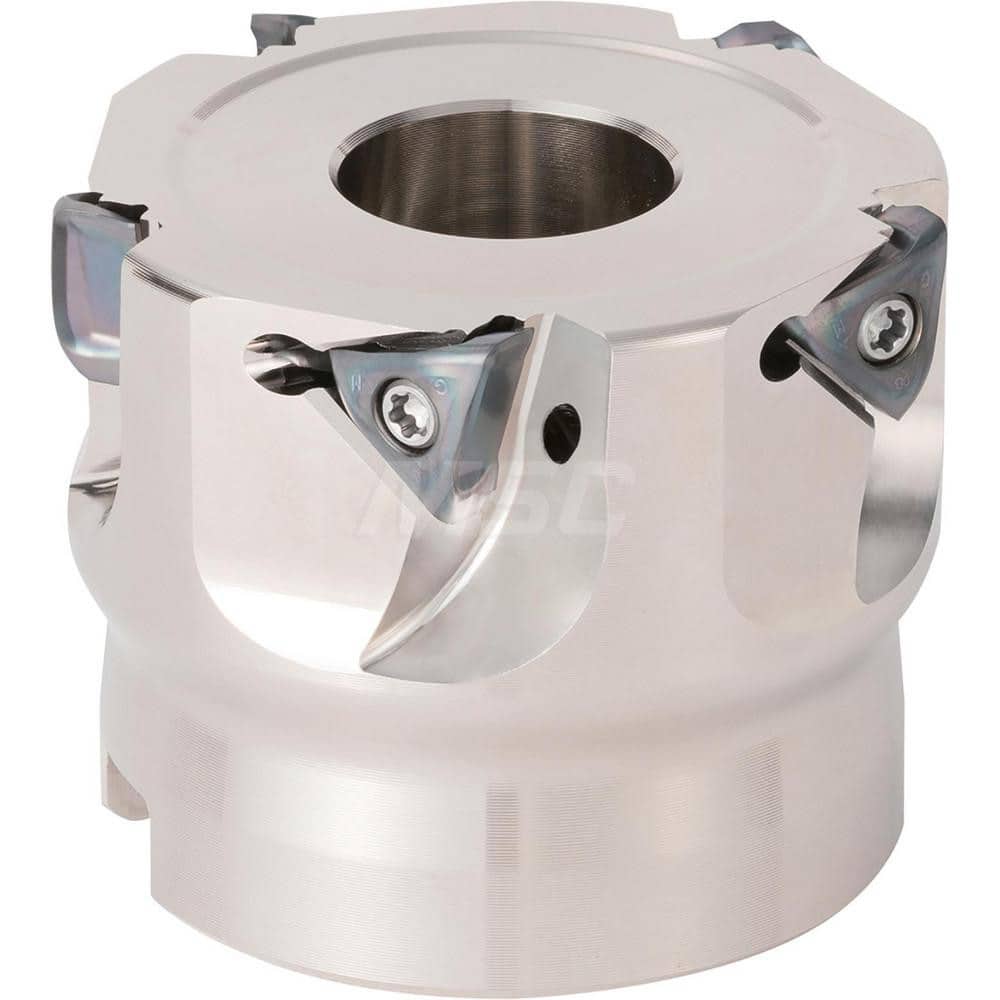

Kyocera MEV 063R066TM Metric Bore Diameter, Coarse Pitch, 6 Flute, 90 Degree Face Mill with a 63.00mm Cutting Diameter for Facing, Helical Milling, Plunging, Pocketing, Ramping, Shouldering, Slotting Applications
Item #: 18291922
Brand: Kyocera
Model #: THN08575
Product Specifications
Maximum Cutting Diameter (mm) | 63.00 |
Maximum Depth of Cut (mm) | 6.00 |
Arbor Hole Diameter (mm) | 22.00 |
Arbor Hole Diameter (Inch) | 22 |
Arbor Hole Diameter (Decimal Inch) | 22.0000 |
Compatible Insert Size Code | TOMT06? |
Cutter Style | Tangential |
Cutting Direction | Right Hand |
Insert Holding Method | Screw |
Lead Angle | 90 |
Series | MEV |
Overall Height (Mm - 5 Decimals) | 40.00 |
Keyway Width (Decimal Inch) | 0.4094 |
Hub Diameter (Decimal Inch) | 1.8898 |
Maximum RPM | 10000 |
Toolholder Material | Steel |
Manufacturers Catalog Number | MEV063R066TM |
Coolant Through | Yes |
Number Of Cutter Inserts | 6 |
Number Of Flutes | 6 |
