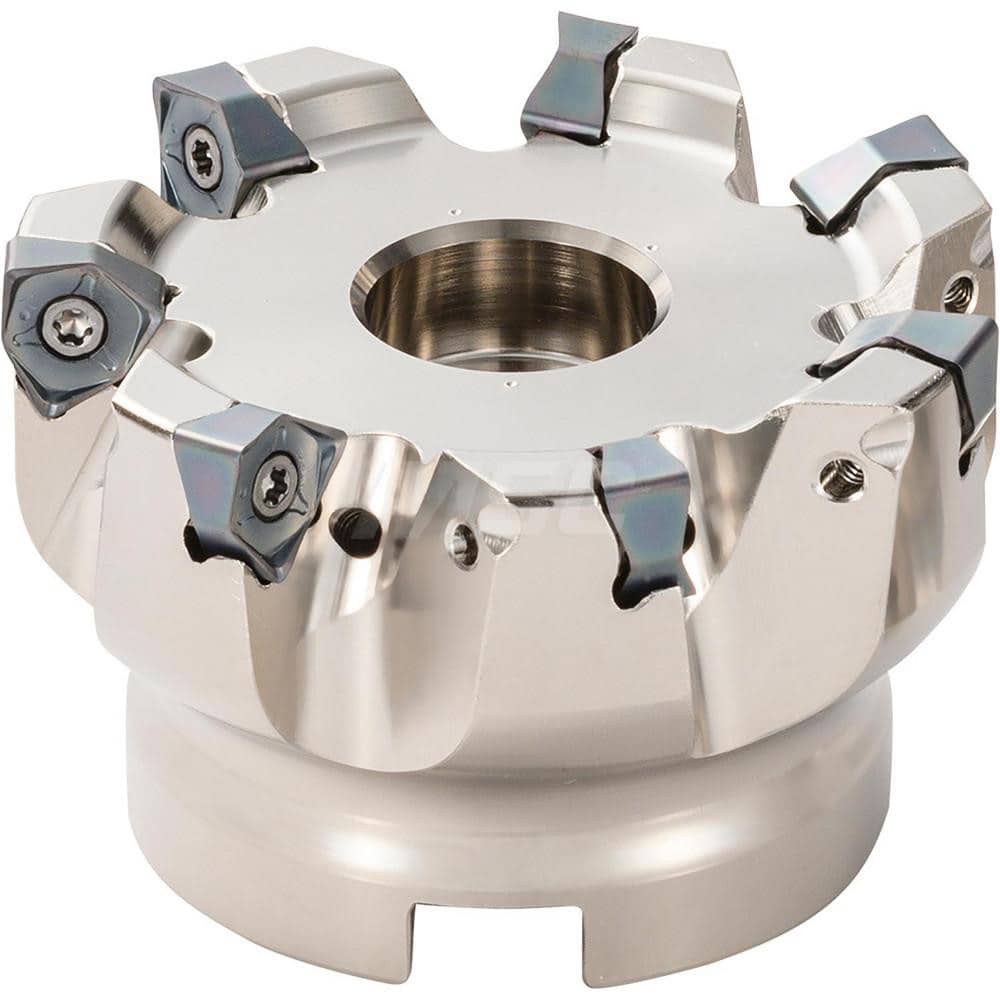

Kyocera MFWN90080R 05 7T Inch Bore Diameter, Course Pitch, 7 Flute, 90 Degree Face Mill with a 3.1496 Cutting Diameter for Shouldering, Slotting, Facing, Plunging Applications
Item #: 18292060
Brand: Kyocera
Model #: THN08515
Product Specifications
| Maximum Cutting Diameter (mm) | 80.00 |
| Maximum Depth of Cut (mm) | 5.00 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Compatible Insert Size Code | WNGT080608FN-AM; WNMU080608EN-SM; WNMU080608EN-GH; WNMU080604EN-GM; WNEU080608EN-GL; WNMU080608EN-GM |
| Cutter Style | Double Sided Inserts |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Series | MFWN |
| Overall Height (Mm - 5 Decimals) | 50.00 |
| Keyway Width (Decimal Inch) | 0.3740 |
| Hub Diameter (Decimal Inch) | 2.7559 |
| Maximum RPM | 10900 |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | MFWN90080R057T |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 7 |
| Number Of Flutes | 7 |
