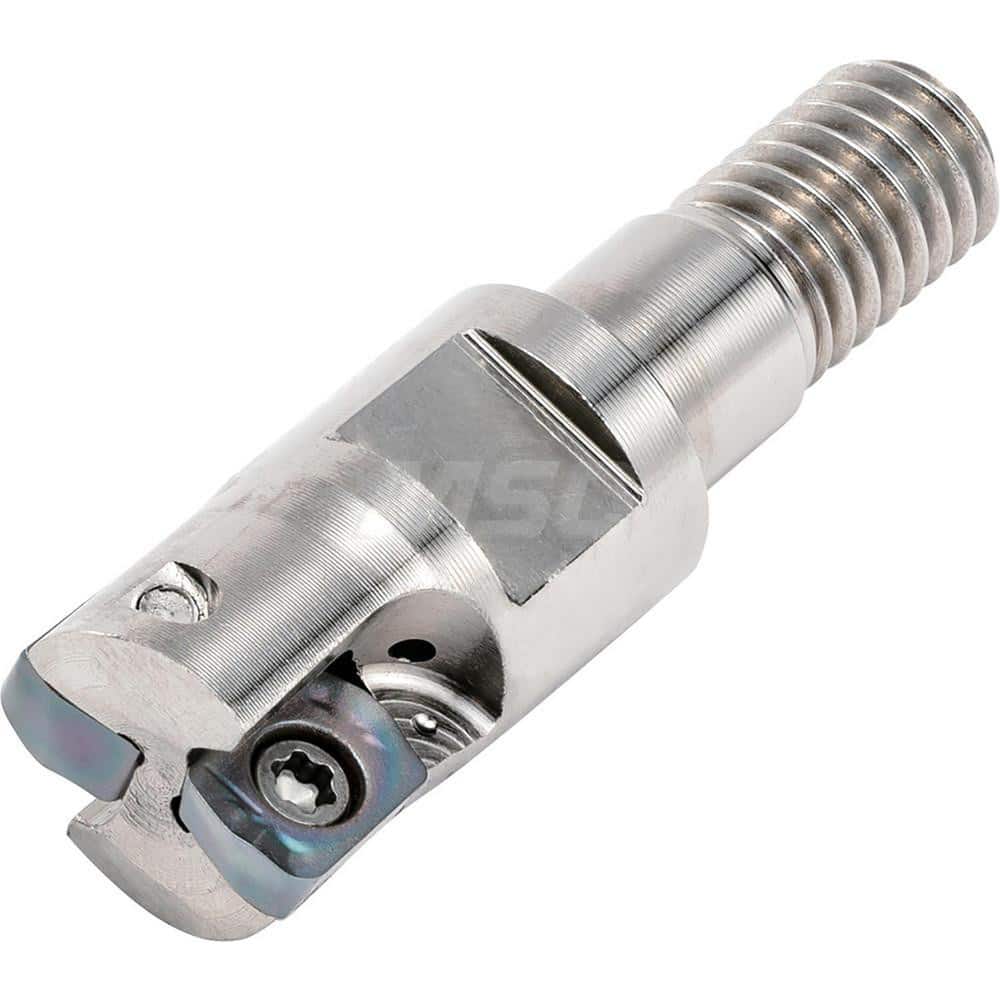

Indexable High-Feed End Mill: Modular Connection Shank Uses 4 LPGT Inserts, 0.5 mm Max Depth, 40 mm OAL, Through Coolant
Item #: 18292342
Brand: Kyocera
Model #: THN08325
Product Specifications
| Cutting Diameter (Decimal Inch) | 0.6299 |
| Cutting Diameter (mm) | 16.00 |
| Maximum Depth of Cut (mm) | 0.50 |
| Toolholder Style | MFH |
| Shank Type | Modular Connection |
| Compatible Insert Style | LPGT |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 4 |
| Overall Length (mm) | 40.00 |
| Series | MFHO |
| Maximum RPM | 11400 |
| Modular Connection Size | M8 |
| Head Length (mm) | 22.00 |
| Weldon Flat | No |
| Complete Insert Compatibility | LPGT01? |
| Lead Angle | 0 |
| Manufacturers Catalog Number | MFH16M08014T |
| Number Of Flutes | 4 |
| End Mill Material | Steel |
| Coolant Through | Yes |
