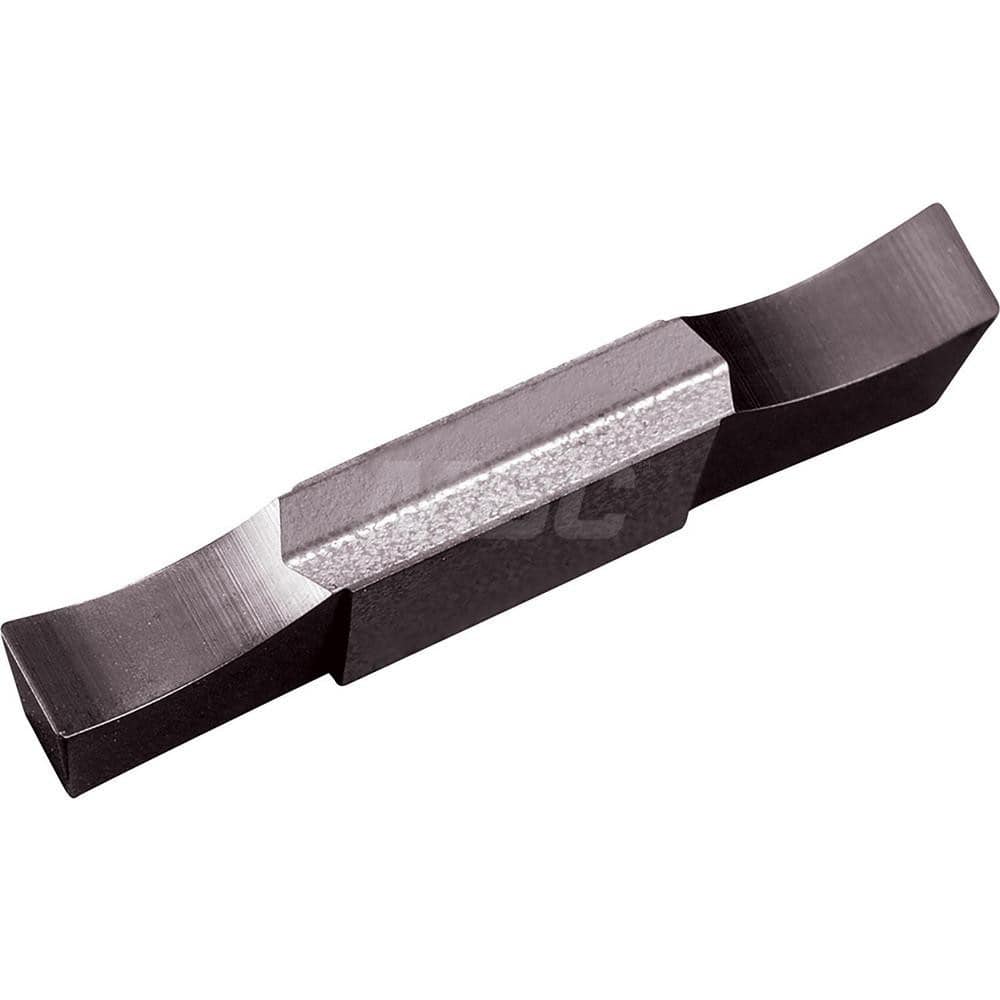

Grooving Insert: GDG8030GS PR1225, Solid Carbide Megacoat, Neutral, 8 mm Cutting Width, 25 mm Max Depth, Series KGD
Item #: 18293027
Brand: Kyocera
Model #: TKE10738
Product Specifications
| Insert Style | GDG |
| Insert Size | 8030 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | PR1225 |
| Cutting Width (mm) | 8.00 |
| Maximum Depth of Cut (mm) | 25.00 |
| Insert Holding Method | Clamp |
| Cutting Height (mm) | 5.50 |
| Insert Hand | Neutral |
| Corner Radius (mm) | 0.40 |
| Maximum Depth Of Cut Range (mm) | 20.00+ |
| Lead Angle | 0 |
| Rake | Positive |
| Cutting Tool Application | External Grooving |
| Series | KGD |
| Coating Process | PVD |
| Iso Code | GDG8030N040GSPR1225 |
| Manufacturers Catalog Number | GDG8030N040GSPR1225 |
| Minimum Groove Width (mm) | -0.02 |
| Maximum Groove Width (mm) | 0.02 |
| Chip Breaker | GS |
| Full Radius | No |
| Overall Width | 8.00 |
| Coating/Finish | Megacoat |
| Number Of Cutting Edges | 2 |
