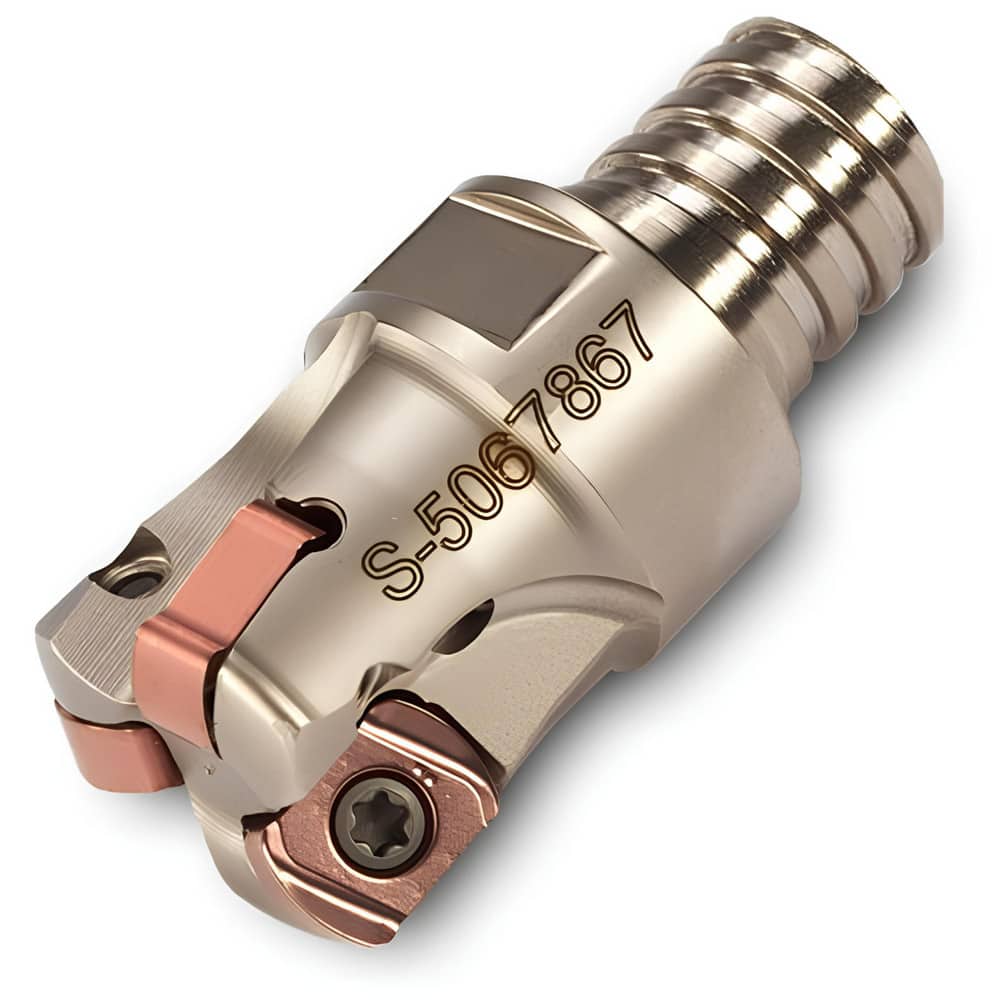

Indexable High-Feed End Mill: 1″ Cut Dia, 0.95″ Modular Shank Uses 4 UNLU Inserts, 0.043″ Max Depth, 1.26″ OAL, Through Coolant
Item #: 18306340
Brand: Ingersoll Cutting Tools
Model #: 3030494
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 0.7060 |
| Maximum Cutting Diameter (Decimal Inch) | 1.0000 |
| Maximum Cutting Diameter (Inch) | 1 |
| Maximum Depth of Cut (Decimal Inch) | 0.0430 |
| Toolholder Style | 1TG1F |
| Shank Type | Modular |
| Shank Diameter (Decimal Inch) | 0.9500 |
| Shank Diameter (mm) | 0.95 |
| Maximum Ramping Angle | 0.95 |
| Compatible Insert Style | UNLU |
| Compatible Insert Size Code | 0603 |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 4 |
| Overall Length (Decimal Inch) | 1.2600 |
| Overall Length (mm) | 1.26 |
| Series | 1TG1F |
| Flute Type | Straight |
| Modular Connection Size | T15 |
| Head Length (Decimal Inch) | 1.2600 |
| Functional Length (Decimal Inch) | 1.2600 |
| Tool Application | Milling |
| Tool Performance | High-Performance |
| Primary Workpiece Material | Universal |
| Number Of Flutes | 4 |
| Coolant Through | Yes |
