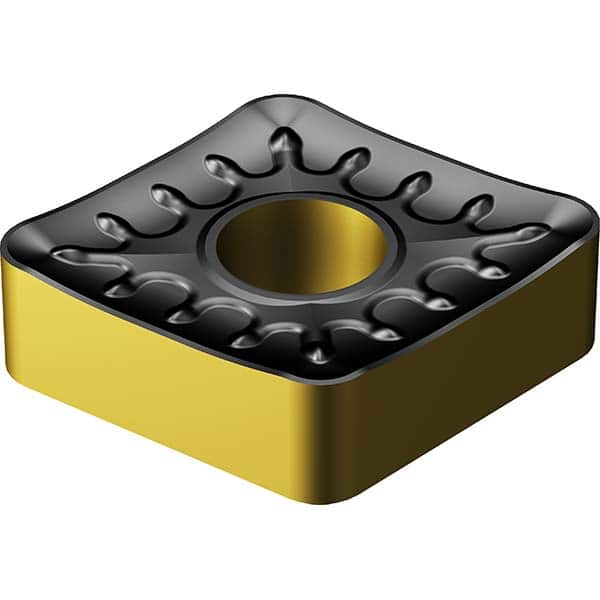

CNMM644-QR 4425 Carbide Turning Insert TiCN+Al2O3+TiN Finish, Neutral, 19.05mm Inscribed Circle, 1.59mm Corner Radius, 6.35mm Thick, 80° Diamond, Series T-Max P
Item #: 19103274
Brand: Sandvik Coromant
Model #: 7860928
Product Specifications
| Insert Style | CNMM |
| Insert Shape Code | C |
| Insert Size Code | 1906 |
| Insert Shape | Diamond 80? |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | 4425 |
| Inscribed Circle (mm) | 19.05 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness | 6.35 |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Inch) | 1/16 |
| Corner Radius (mm) | 1.59 |
| Corner Radius (Decimal Inch) | 0.0625 |
| Relief Angle | 0 |
| Series | T-Max P |
| Coating Process | CVD |
| Primary Workpiece Material | K |
| Secondary Workpiece Material | P |
| Iso Code | CNMM 19 06 16-QR 4425 |
| Manufacturers Catalog Number | CNMM 644-QR 4425 |
| Cutting Direction | Neutral |
| Chip Breaker | M |
| Coating/Finish | TiCN; TiN; Al2O3 |
