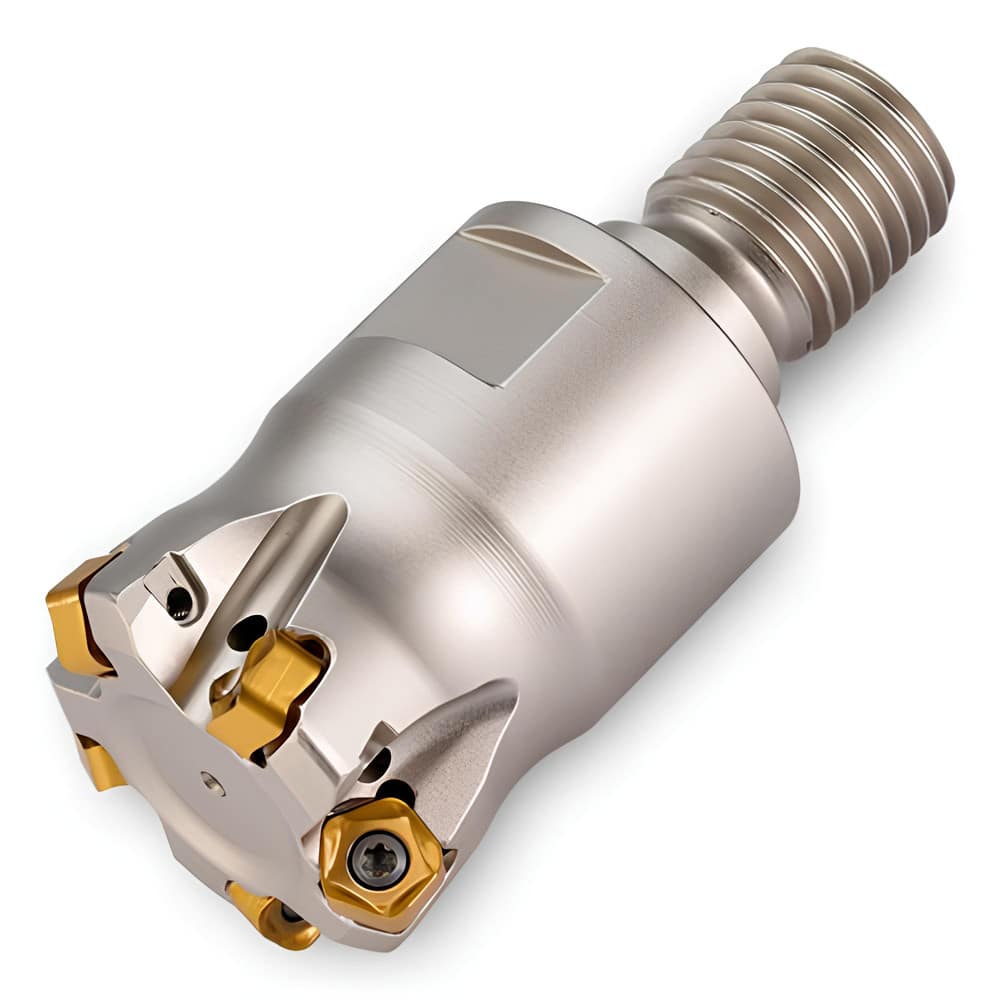

Indexable High-Feed End Mill: 1″ Cut Dia, 0.82″ Modular Shank Uses 4 PNCU Inserts, 0.059″ Max Depth, 1-1/2″ OAL, Through Coolant
Item #: 19255520
Brand: Ingersoll Cutting Tools
Model #: 2925889
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 0.6770 |
| Maximum Cutting Diameter (Decimal Inch) | 1.0000 |
| Maximum Cutting Diameter (Inch) | 1 |
| Maximum Depth of Cut (Decimal Inch) | 0.0590 |
| Toolholder Style | 1DP1C |
| Shank Type | Modular |
| Shank Diameter (Decimal Inch) | 0.8200 |
| Shank Diameter (mm) | 0.82 |
| Maximum Ramping Angle | 1.10 |
| Compatible Insert Style | PNCU |
| Compatible Insert Size Code | 0503 |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 4 |
| Overall Length (Decimal Inch) | 1.5000 |
| Overall Length (Inch) | 1-1/2 |
| Overall Length (mm) | 1.50 |
| Series | 1DP1C |
| Flute Type | Straight |
| Modular Connection Size | M12 |
| Head Length (Decimal Inch) | 1.5000 |
| Functional Length (Decimal Inch) | 1.5000 |
| Tool Application | Milling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Number Of Flutes | 4 |
| Coolant Through | Yes |
