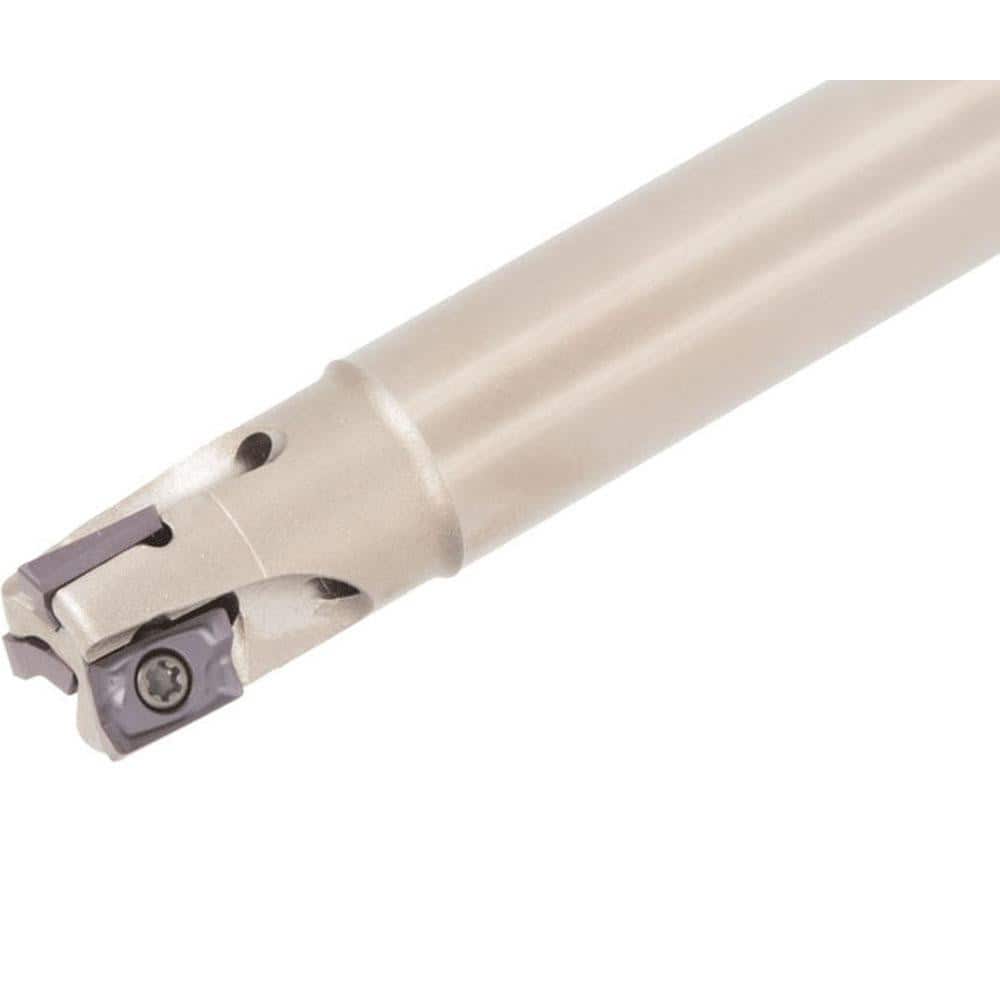

Indexable Square-Shoulder End Mill: EPAV06U1.00C1.00R05, 1.0000'' Cut Dia, 0.2360'' Max Depth of Cut, 1.0000'' Shank Dia, Straight Shank Uses 5, Normal Pressure,
Item #: 19875855
Brand: Tungaloy
Model #: 6769902
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 1.0000 |
| Minimum Cutting Diameter (Inch) | 1 |
| Maximum Cutting Diameter (Decimal Inch) | 1.0000 |
| Maximum Cutting Diameter (Inch) | 1 |
| Maximum Depth of Cut (Decimal Inch) | 0.2360 |
| Cutter Style | EPAV |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Maximum Ramping Angle | 1 |
| Insert Holding Method | Screw |
| Overall Length (Decimal Inch) | 4.5000 |
| Tool Material | Steel |
| Series | EPAV |
| Lead Angle | 90 |
| Shank Length (Inch) | 3-1/8 |
| Shank Length (Decimal Inch) | 3.1250 |
| Head Length (Inch) | 1-3/8 |
| Head Length (Decimal Inch) | 1.3750 |
| Tool Application | Shouldering |
| Primary Workpiece Material | Universal |
| Number Of Flutes | 5 |
| Usable Length (Decimal Inch) | 4.5000 |
| Number Of Cutter Inserts | 5 |
| Coolant Through | Normal Pressure |
