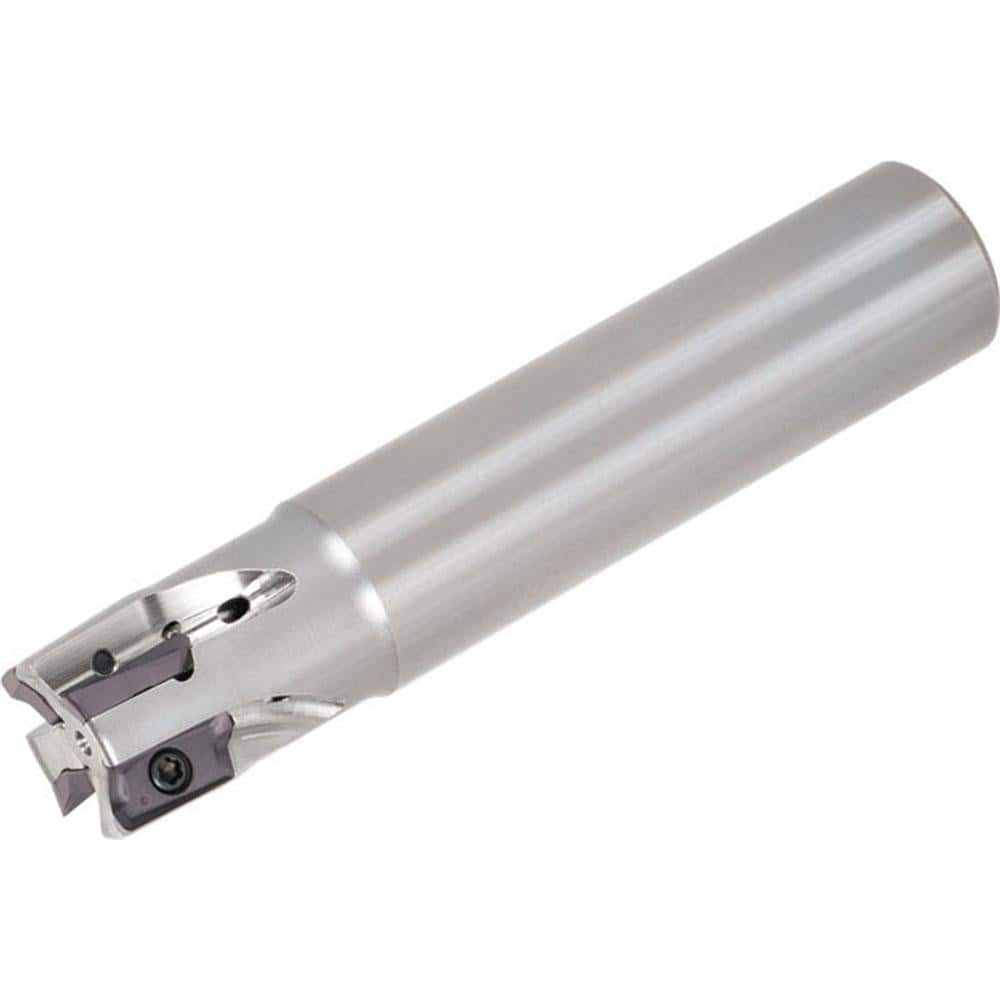

Indexable Square-Shoulder End Mill: EPAV12M016C16.0R02, 16.0000'' Shank Dia, Straight Shank Uses 2, Normal Pressure, 85.00 mm OAL
Item #: 19877265
Brand: Tungaloy
Model #: 6776657
Product Specifications
| Minimum Cutting Diameter (mm) | 16.00 |
| Maximum Cutting Diameter (mm) | 16.00 |
| Maximum Depth of Cut (mm) | 11.50 |
| Cutter Style | EPAV |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 16.0000 |
| Shank Diameter (Inch) | 16 |
| Maximum Ramping Angle | 3.5 |
| Insert Holding Method | Screw |
| Overall Length (mm) | 85.00 |
| Tool Material | Steel |
| Series | EPAV |
| Lead Angle | 90 |
| Shank Length (mm) | 60.00 |
| Head Length (mm) | 25.00 |
| Tool Application | Shouldering |
| Primary Workpiece Material | Universal |
| Usable Length (mm) | 85.000 |
| Number Of Flutes | 2 |
| Number Of Cutter Inserts | 2 |
| Coolant Through | Normal Pressure |
