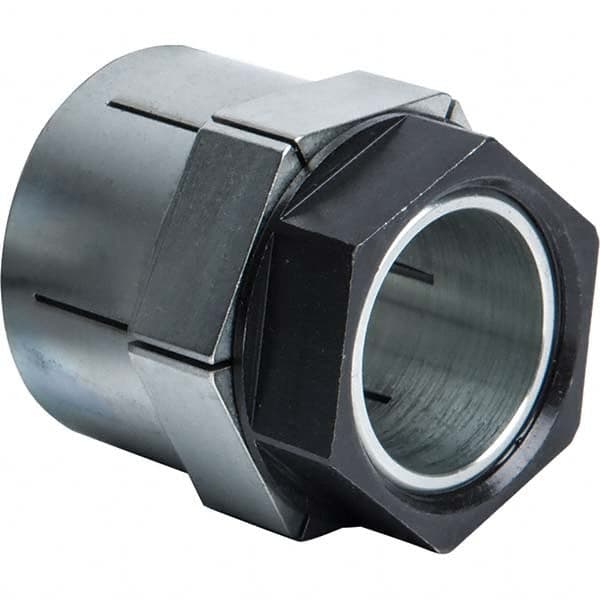

Climax Metal Products - Shaft Mounts Bore Diameter: 1-15/16 (Inch) Contact Pressure on Hub (psi): 5,894.000
Item #: 19064153
Brand: Climax Metal Products
Model #: C801E-193
Product Specifications
Shaft Mounts; Bore Diameter: 1-15/16 (Inch); Contact Pressure on Hub (psi): 5,894.000 ; Contact Pressure on Shaft (psi): 8,745.000 ; Maximum Torque Inch/Lbs: 1,031.00 (Pounds); Maximum Transmissible Thrust: 12,775.000 (Pounds); Outside Diameter (Inch): 2-7/8
| Bore Diameter (Inch) | 1-15/16 |
| Contact Pressure on Hub (psi) | 5894.000 |
| Contact Pressure on Shaft (psi) | 8745.000 |
| Maximum Torque Inch/Lbs (Pounds) | 1031.00 |
| Maximum Transmissible Thrust (Pounds) | 12775.000 |
| Outside Diameter (Inch) | 2-7/8 |
| Overall Length (Inch) | 3.563 |
| Collar Thickness (Inch) | 1 |
| Maximum Torque Foot/Lbs (Pounds) | 1031 |
