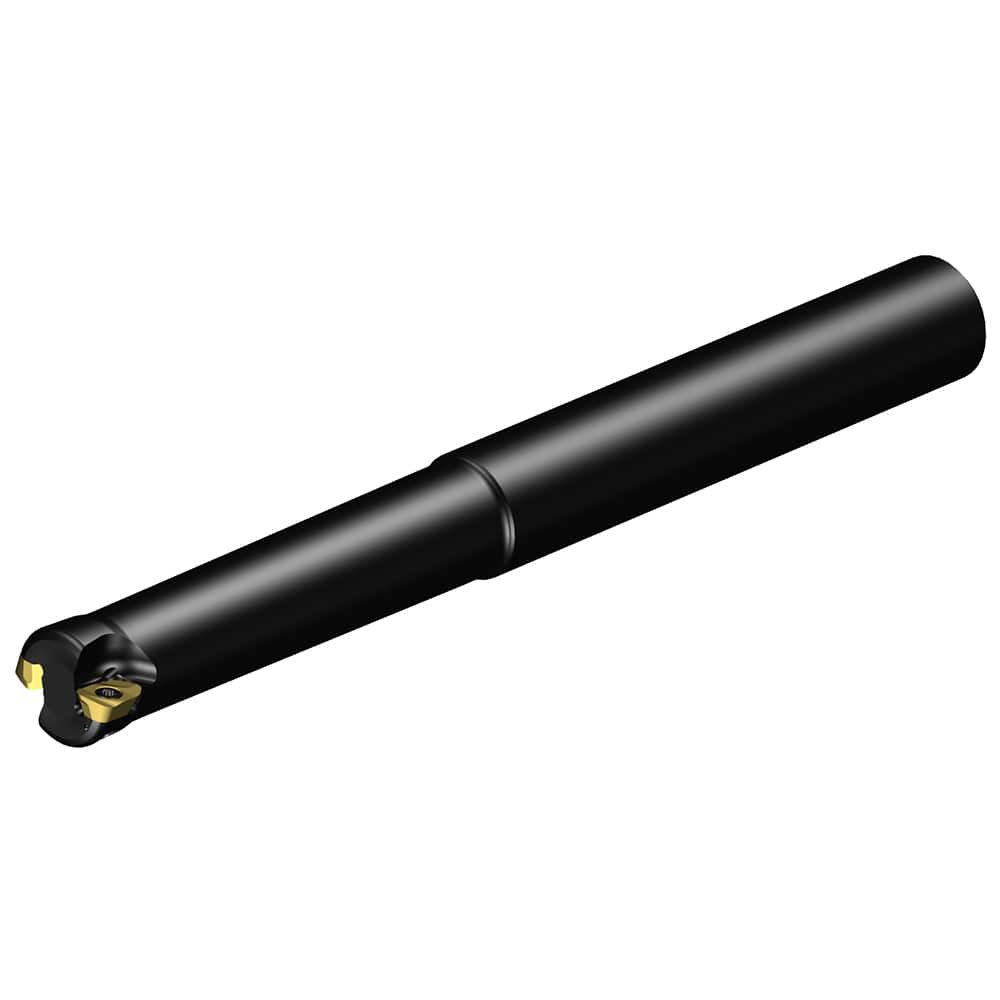

Indexable High-Feed Face Mills; Cutting Diameter (mm): 11.25; Cutting Diameter (Decimal Inch): 0.442913; Maximum Depth of Cut (mm): 0.8; Maximum Depth of Cut (Decimal Inch): 0.0315; Shank Diameter (mm): 11.25; Series: CoroMill MH20; Cutter Style: MH20-AR.
Item #: 20550281
Brand: Sandvik Coromant
Model #: 8029446
Product Specifications
| Cutting Diameter (mm) | 11.25 |
| Cutting Diameter (Decimal Inch) | 0.442913 |
| Maximum Depth of Cut (mm) | 0.8 |
| Maximum Depth of Cut (Decimal Inch) | 0.0315 |
| Shank Diameter (mm) | 11.25 |
| Series | CoroMill MH20 |
| Cutter Style | MH20-AR..Oxx |
| Number of Cutter Inserts | 2 |
| Insert Compatibility | CoroMill MH20 -0603 (MH20-060320) |
| Maximum Rpm | 15500 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw/Clamp |
| Maximum Body Diameter (Decimal Inch) | 0.75 |
| Complete Insert Compatibility | CoroMill MH20 -0603 (MH20-060320) |
| Manufacturers Catalog Number | MH20-AR019O19-06L |
