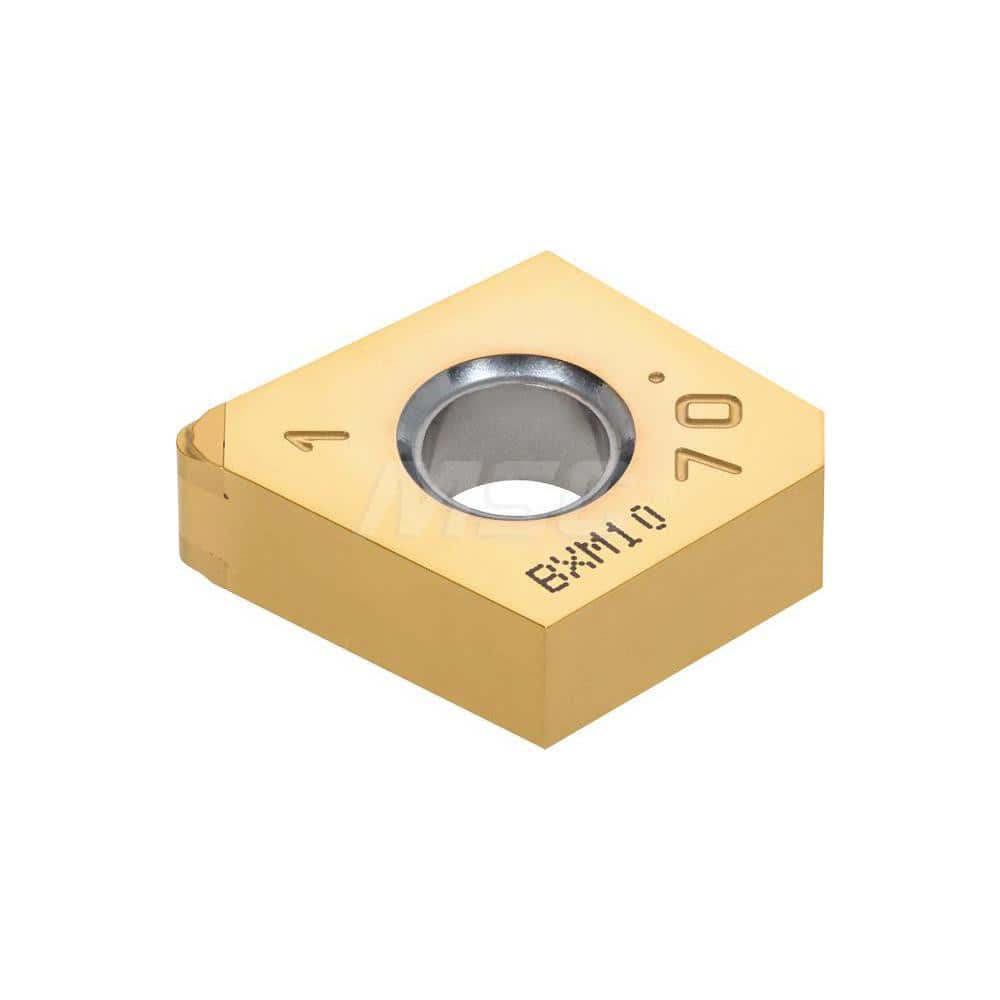

Turning Insert: 2QP-GNGG433HP BXA10, Polycrystalline Cubic Boron Nitride TiAlN & TiCN Finish, Neutral, 1/2″ Inscribed Circle, 0.0470″ Corner Radius, 70.0 ° N/A Diamond, Series GNGG
Item #: 20879029
Brand: Tungaloy
Model #: 6792145
Product Specifications
| Insert Style | GNGG |
| Insert Size Code | 433 |
| Insert Shape | Diamond |
| Insert Material | Polycrystalline Cubic Boron Nitride |
| Manufacturer Grade | BXA10 |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Maximum Depth of Cut (Decimal Inch) | 0.0079 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Included Angle | 70.0 |
| Relief Angle | 0 |
| Series | GNGG |
| Coating Process | PVD |
| Rake | Negative |
| Wiper Edge | No |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Ansi Code | 2QPGNGG433HPBXA10 |
| Iso Code | 2QP-GNGG120412-HP BXA10 |
| Chip Breaker | HP |
| Coating/Finish | TiCN; TiAlN |
