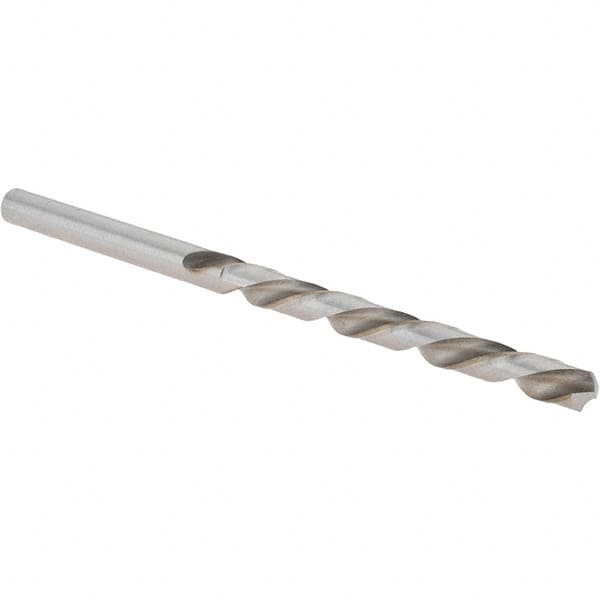

Cle-Line - 3/16" 118° High Speed Steel Jobber Drill
Item #: 57598914
Brand: Cle-Line
Model #: C18409
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (Inch) | 3/16 |
| Drill Bit Size (Decimal Inch) | 0.1875 |
| Drill Point Angle | 118 |
| Drill Bit Material | High Speed Steel |
| Drill Bit Finish/Coating | Bright |
| Flute Type | Spiral |
| Cutting Direction | Left Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (Inch) | 2-5/16 |
| Flute Length (mm) | 58.74 |
| Flute Length (Decimal Inch) | 2.3125 |
| Overall Length (mm) | 88.90 |
| Overall Length (Decimal Inch) | 3.5000 |
| Overall Length (Inch) | 3-1/2 |
| Point Type | Standard |
| Shank Diameter (mm) | 4.76 |
| Shank Diameter (Inch) | 3/16 |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Spiral Type | Regular Spiral |
| Shank Length (mm) | 30.16 |
| Shank Length (Decimal Inch) | 1.1874 |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (Decimal Inch) | +0.0000 to -0.0007 |
| Web Thinning | Web-Thinned |
| Drill Bit Grade | General Purpose |
| Series/List | 1898L |
