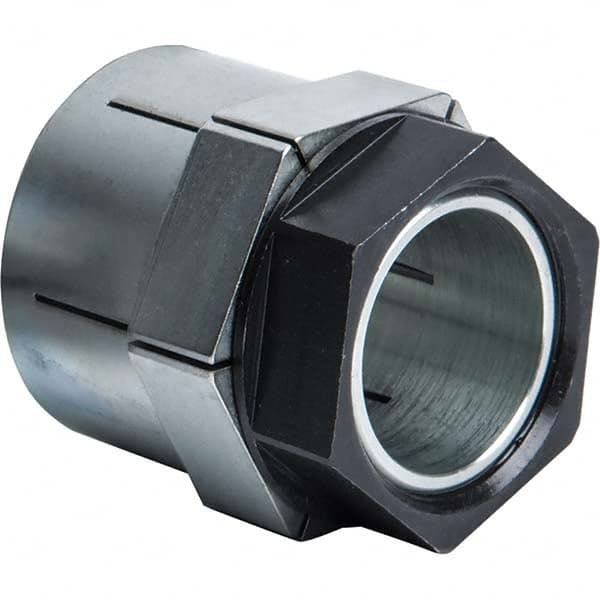

Climax Metal Products - Shaft Mounts Bore Diameter: 2-7/16 (Inch) Contact Pressure on Hub (psi): 4,396.000
Item #: 19064088
Brand: Climax Metal Products
Model #: C801E-243
Product Specifications
Shaft Mounts; Bore Diameter: 2-7/16 (Inch); Contact Pressure on Hub (psi): 4,396.000 ; Contact Pressure on Shaft (psi): 6,087.000 ; Maximum Torque Inch/Lbs: 1,278.00 (Pounds); Maximum Transmissible Thrust: 12,585.000 (Pounds); Outside Diameter (Inch): 3-3/8
| Bore Diameter (Inch) | 2-7/16 |
| Contact Pressure on Hub (psi) | 4396.000 |
| Contact Pressure on Shaft (psi) | 6087.000 |
| Maximum Torque Inch/Lbs (Pounds) | 1278.00 |
| Maximum Transmissible Thrust (Pounds) | 12585.000 |
| Outside Diameter (Inch) | 3-3/8 |
| Overall Length (Inch) | 3-7/8 |
| Collar Thickness (Inch) | 15/16 |
| Maximum Torque Foot/Lbs (Pounds) | 1278 |
