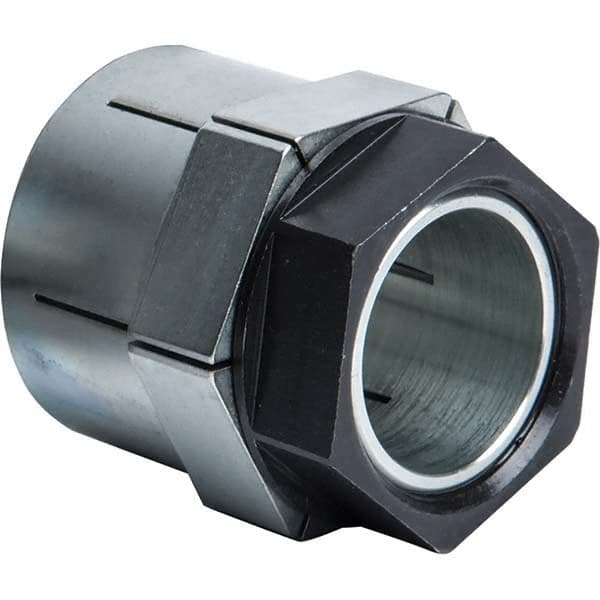

Climax Metal Products - Shaft Mounts Bore Diameter: 45.000 (mm) Contact Pressure on Hub (psi): 4,396.000
Item #: 19064179
Brand: Climax Metal Products
Model #: C801M-045
Product Specifications
Shaft Mounts; Bore Diameter: 45.000 (mm); Contact Pressure on Hub (psi): 4,396.000 ; Contact Pressure on Shaft (psi): 9,572.000 ; Maximum Torque Inch/Lbs: 1,398.00 (Pounds); Maximum Transmissible Thrust: 12,205.000 (Pounds); Outside Diameter (mm): 73.0000
| Bore Diameter (mm) | 45.000 |
| Contact Pressure on Hub (psi) | 4396.000 |
| Contact Pressure on Shaft (psi) | 9572.000 |
| Maximum Torque Inch/Lbs (Pounds) | 1398.00 |
| Maximum Transmissible Thrust (Pounds) | 12205.000 |
| Outside Diameter (mm) | 73.0000 |
| Overall Length (mm) | 90.5000 |
| Collar Thickness (mm) | 28.000 |
| Maximum Torque Newton/Meter | 1277.0000 |
