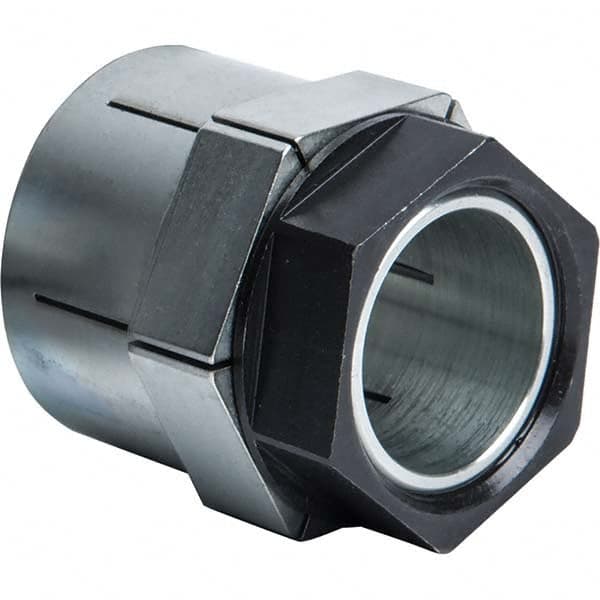

Climax Metal Products - Shaft Mounts Bore Diameter: 1-5/16 (Inch) Contact Pressure on Hub (psi): 5,825.000
Item #: 19063981
Brand: Climax Metal Products
Model #: C801E-131
Product Specifications
Shaft Mounts; Bore Diameter: 1-5/16 (Inch); Contact Pressure on Hub (psi): 5,825.000 ; Contact Pressure on Shaft (psi): 10,540.000 ; Maximum Torque Inch/Lbs: 428.00 (Pounds); Maximum Transmissible Thrust: 7,823.000 (Pounds); Outside Diameter (Inch): 2-3/8
| Bore Diameter (Inch) | 1-5/16 |
| Contact Pressure on Hub (psi) | 5825.000 |
| Contact Pressure on Shaft (psi) | 10540.000 |
| Maximum Torque Inch/Lbs (Pounds) | 428.00 |
| Maximum Transmissible Thrust (Pounds) | 7823.000 |
| Outside Diameter (Inch) | 2-3/8 |
| Overall Length (Inch) | 2-3/4 |
| Collar Thickness (Inch) | 1-1/16 |
| Maximum Torque Foot/Lbs (Pounds) | 428 |
