Milling Insert: ROGX 1225R6-MR4 CTPK231, CTPK231, Solid Carbide N/A Finish,
Item #: 26222943
Brand: Ceratizit
Model #: 5614353500
Product Specifications
| Insert Style | ROGX |
| Insert Size Code | 1225 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | CTPK231 |

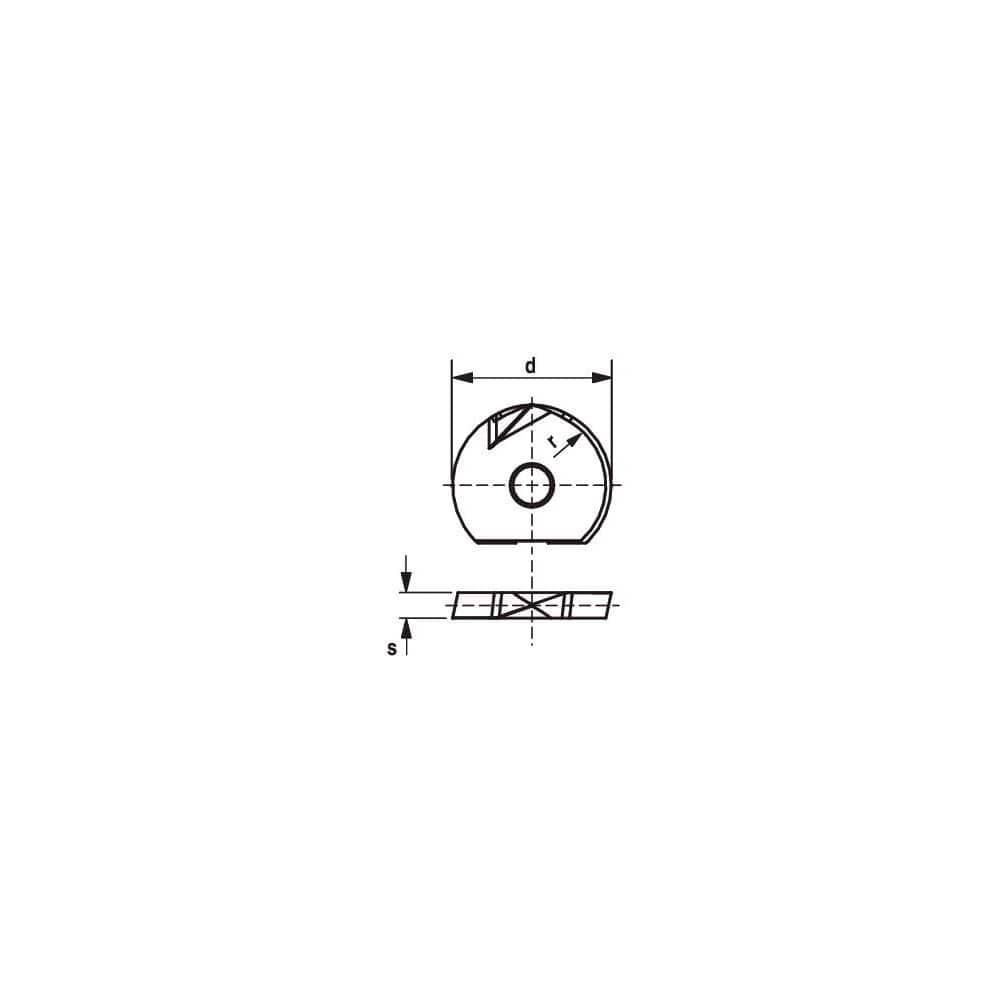

| Inscribed Circle (Decimal Inch) | 0.4724 |
| Corner Radius (Decimal Inch) | 0.2362 |
| Insert Hand | Neutral |
| Series | ROGX |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1969 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Number Of Cutting Edges | 2 |
| Cutting Edge Effective Length (Decimal Inch) | 0.2362 |
| Insert Shape | Ball Nose |
| Rake | Negative |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Secondary Workpiece Material | Non-Ferrous Metal; Hard Material; Super-Alloys & Titanium |
| Secondary Workpiece Material Code | S; H; N |
| Iso Code | ROGX 1225R6-MR4 CTPK231 |
| Chip Breaker | MR4 |
| Coating/Finish | Coated |
| Thickness (Decimal Inch - 4 Decimals) | 0.0984 |
