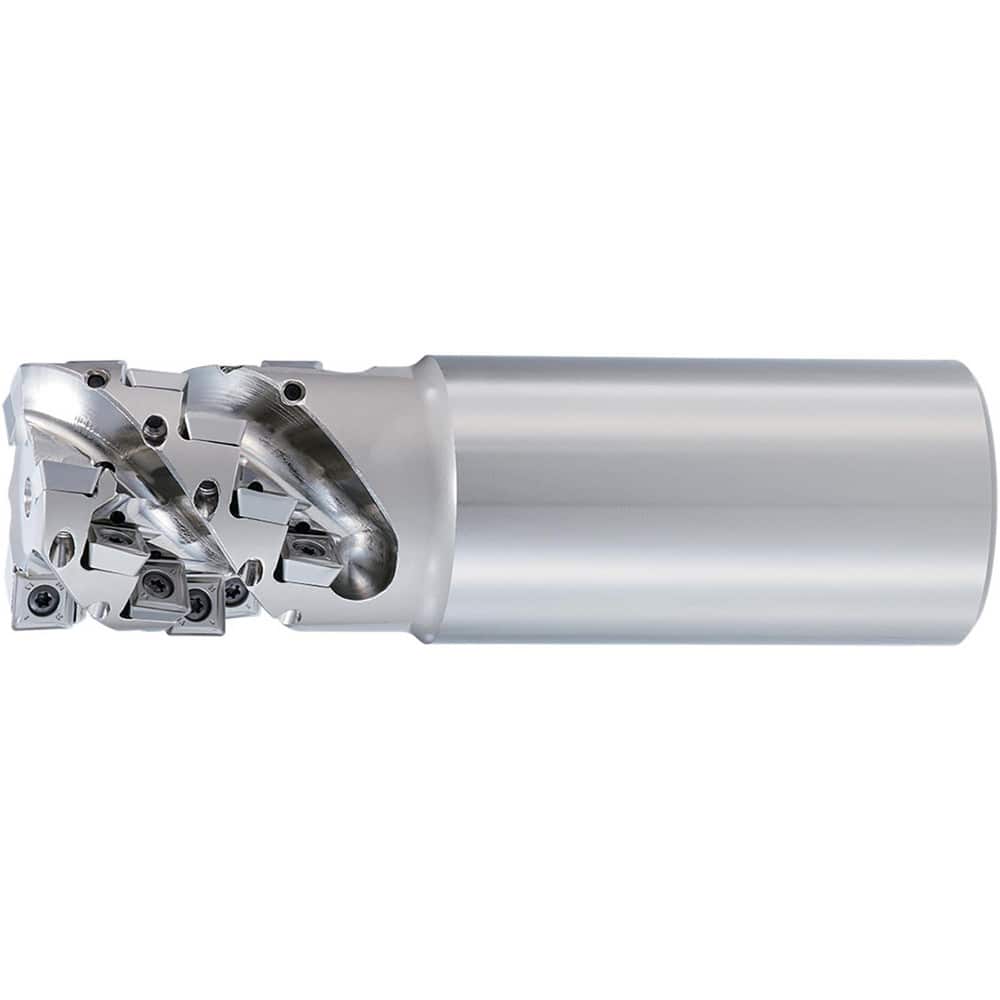

Indexable Square-Shoulder End Mill: PSFL09R150FA125-3-43, 1.5000'' Cut Dia, 1.6930'' Max Depth of Cut, 1.2500'' Shank Dia, Weldon Flat Shank Uses 18, Normal Pressure,
Item #: 26310367
Brand: OSG
Model #: 53200003
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 1.5000 |
| Minimum Cutting Diameter (Inch) | 1-1/2 |
| Maximum Cutting Diameter (Decimal Inch) | 1.5000 |
| Maximum Cutting Diameter (Inch) | 1-1/2 |
| Maximum Depth of Cut (Decimal Inch) | 1.6930 |
| Cutter Style | PSFL |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Maximum Ramping Angle | 0 |
| Insert Holding Method | Screw |
| Overall Length (Decimal Inch) | 4.6400 |
| Tool Material | Steel |
| Series | 53200 |
| Number Of Cutter Inserts | 18 |
| Coolant Through | Normal Pressure |
