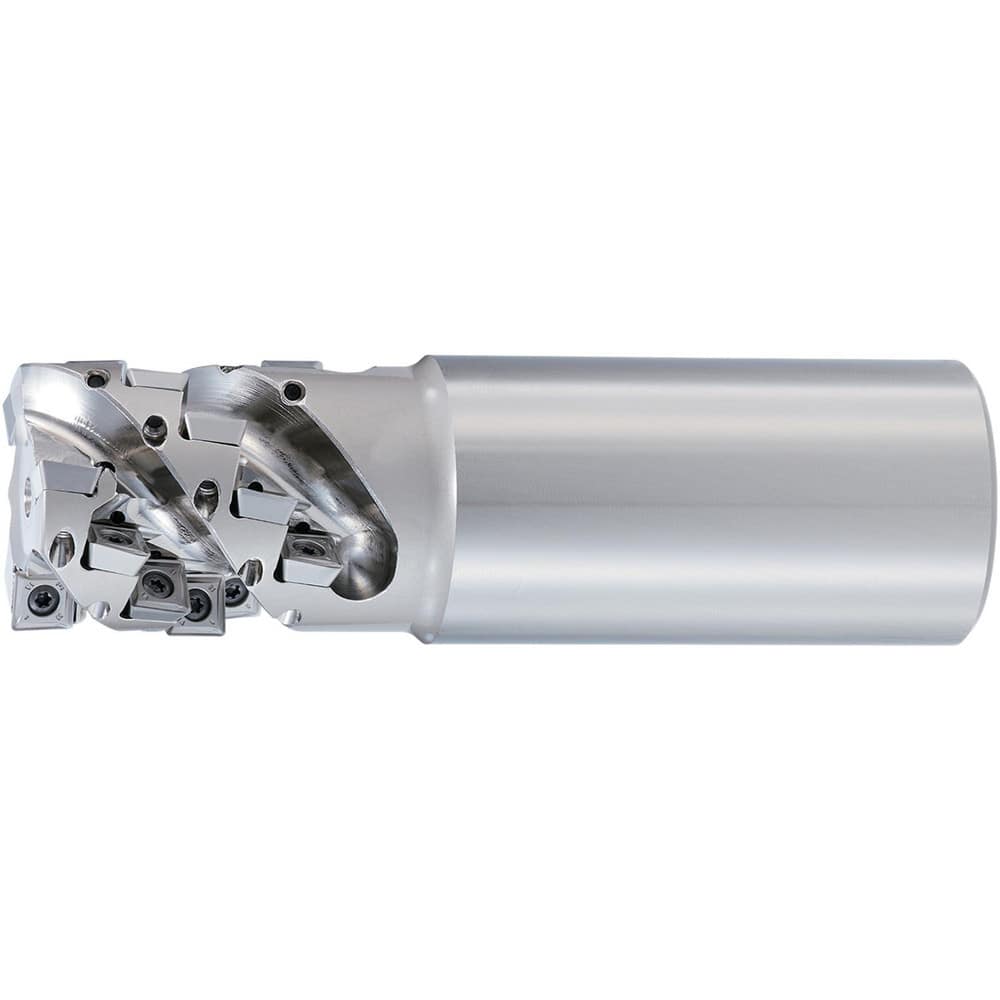

Indexable Square-Shoulder End Mill: PSFL09R040SS42-3-43, 1.2500'' Shank Dia, Straight Shank Uses 18, Normal Pressure, 140.00 mm OAL
Item #: 26310441
Brand: OSG
Model #: 7803701
Product Specifications
| Minimum Cutting Diameter (mm) | 40.00 |
| Maximum Cutting Diameter (mm) | 40.00 |
| Maximum Depth of Cut (mm) | 43.00 |
| Cutter Style | PSFL |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Maximum Ramping Angle | 0 |
| Insert Holding Method | Screw |
| Overall Length (mm) | 140.00 |
| Tool Material | Steel |
| Series | 78037 |
| Number Of Cutter Inserts | 18 |
| Coolant Through | Normal Pressure |
