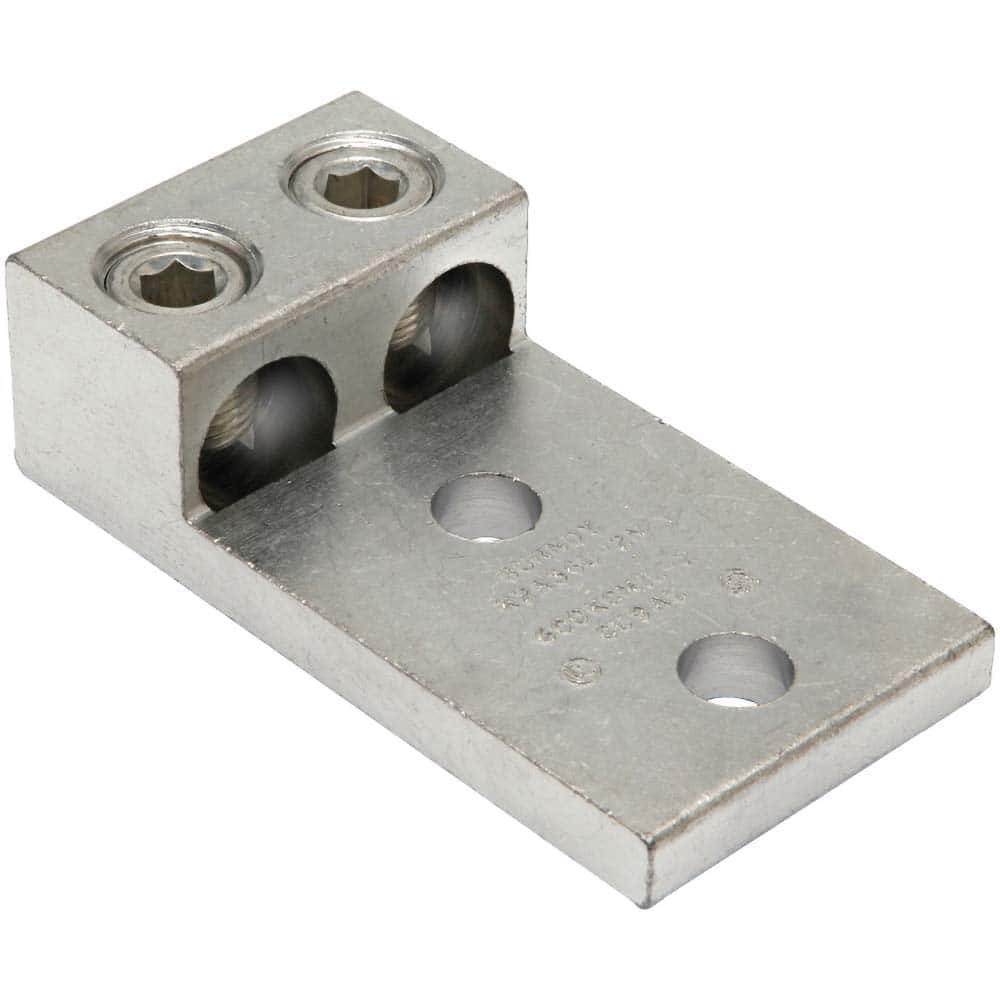

Burndy - Ring Terminals; Terminal Type: Rectangle ; Insulation Type: NonInsulated ; Connection Type: Lug ; Compatible Wire Size (AWG): 2 (Strand) ; Compatible Wire Size (kcmil): 600 ; Stud Size (Inch): 1/2
Item #: 29223690
Brand: Burndy
Model #: K2A36U2N
Product Specifications
Ring Terminals; Terminal Type: Rectangle ; Insulation Type: NonInsulated ; Connection Type: Lug ; Compatible Wire Size (AWG): 2 (Strand) ; Compatible Wire Size (kcmil): 600 ; Stud Size (Inch): 1/2
| Terminal Type | Rectangle |
| Insulation Type | NonInsulated |
| Connection Type | Lug |
| Compatible Wire Size (AWG) | 2 (Strand) |
| Compatible Wire Size (kcmil) | 600 |
| Stud Size (Inch) | 1/2 |
| Color | Aluminum |
| Contact Material | Aluminum |
| Insulation Material | NonInsulated |
| Ring Width (Inch) | 2.42 |
| Ring Width (Decimal Inch) | 2.42 |
| Overall Length (mm) | 119 |
| Contact Plating | Tin |
| Standards Met | CSA Certified; Prop 65 Notice; RoHS EX Compliant; UL 486A-486B |
