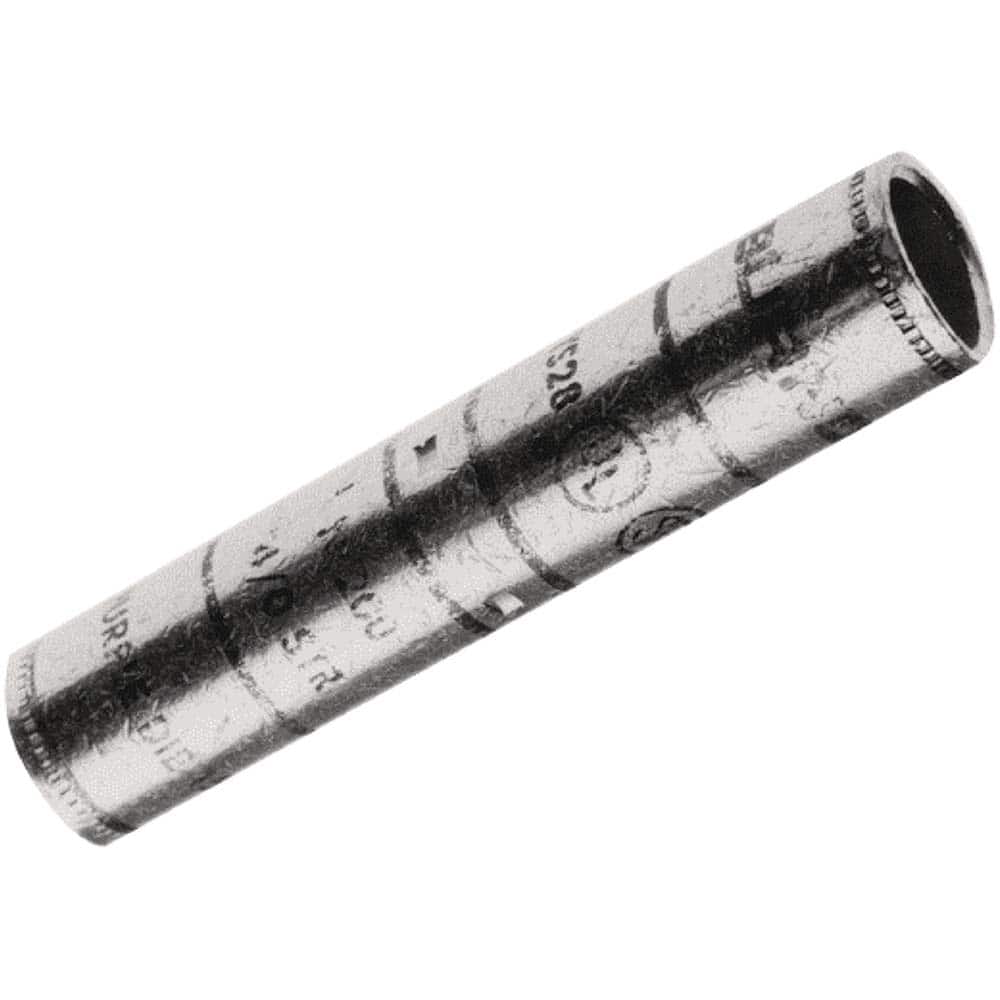

Burndy - Butt Splice Terminals; Insulation Type: NonInsulated ; Insulation Material: NonInsulated ; Connection Type: Compression ; Compatible Wire Size (kcmil): 400 ; Color: Blue ; Overall Length (mm): 117.348
Item #: 29225554
Brand: Burndy
Model #: YS32
Product Specifications
Butt Splice Terminals; Insulation Type: NonInsulated ; Insulation Material: NonInsulated ; Connection Type: Compression ; Compatible Wire Size (kcmil): 400 ; Color: Blue ; Overall Length (mm): 117.348
| Insulation Type | NonInsulated |
| Insulation Material | NonInsulated |
| Connection Type | Compression |
| Compatible Wire Size (kcmil) | 400 |
| Color | Blue |
| Overall Length (mm) | 117.348 |
| Overall Length (Inch) | 4.62 |
| Overall Length (Decimal Inch) | 4.62 |
| Overall Diameter (Inch) | 0.95 |
| Overall Diameter (Decimal Inch) | 0.95 |
| Contact Material | Copper |
| Contact Plating | Tin |
| Standards Met | CSA Certified; RoHS CM Compliant; UL 486A-486 |
| Additional Information | Sub Brand: HYLINK; Operating Voltage: 35000 V; Length: 4.62 in; Barrel Style: Chamfered; Barrel Type: Long; Strip Length: 2-1/16 in; Die Index: 19 or 470; Temperature Rating: 90?C |
