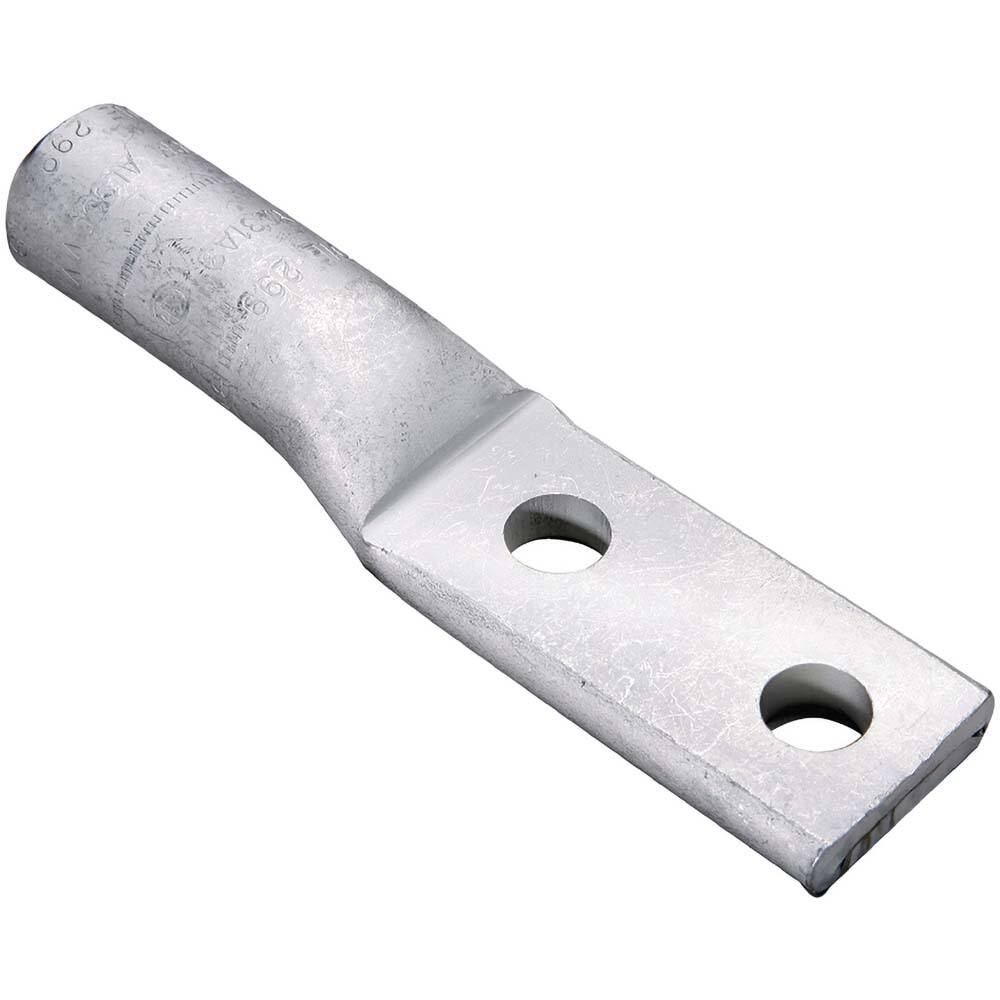

Burndy - Ring Terminals; Terminal Type: Rectangle ; Insulation Type: NonInsulated ; Connection Type: Compression ; Compatible Wire Size (kcmil): 750 ; Stud Size (Inch): 1/2 ; Color: Yellow
Item #: 29225786
Brand: Burndy
Model #: YA39A5
Product Specifications
Ring Terminals; Terminal Type: Rectangle ; Insulation Type: NonInsulated ; Connection Type: Compression ; Compatible Wire Size (kcmil): 750 ; Stud Size (Inch): 1/2 ; Color: Yellow
| Terminal Type | Rectangle |
| Insulation Type | NonInsulated |
| Connection Type | Compression |
| Compatible Wire Size (kcmil) | 750 |
| Stud Size (Inch) | 1/2 |
| Color | Yellow |
| Contact Material | Aluminum |
| Insulation Material | NonInsulated |
| Ring Width (Inch) | 1.62 |
| Ring Width (Decimal Inch) | 1.62 |
| Overall Length (mm) | 180 |
| Contact Plating | Tin |
| Standards Met | CSA Certified; Prop 65 Notice; RoHS CM Compliant; UL 486A-486B |
