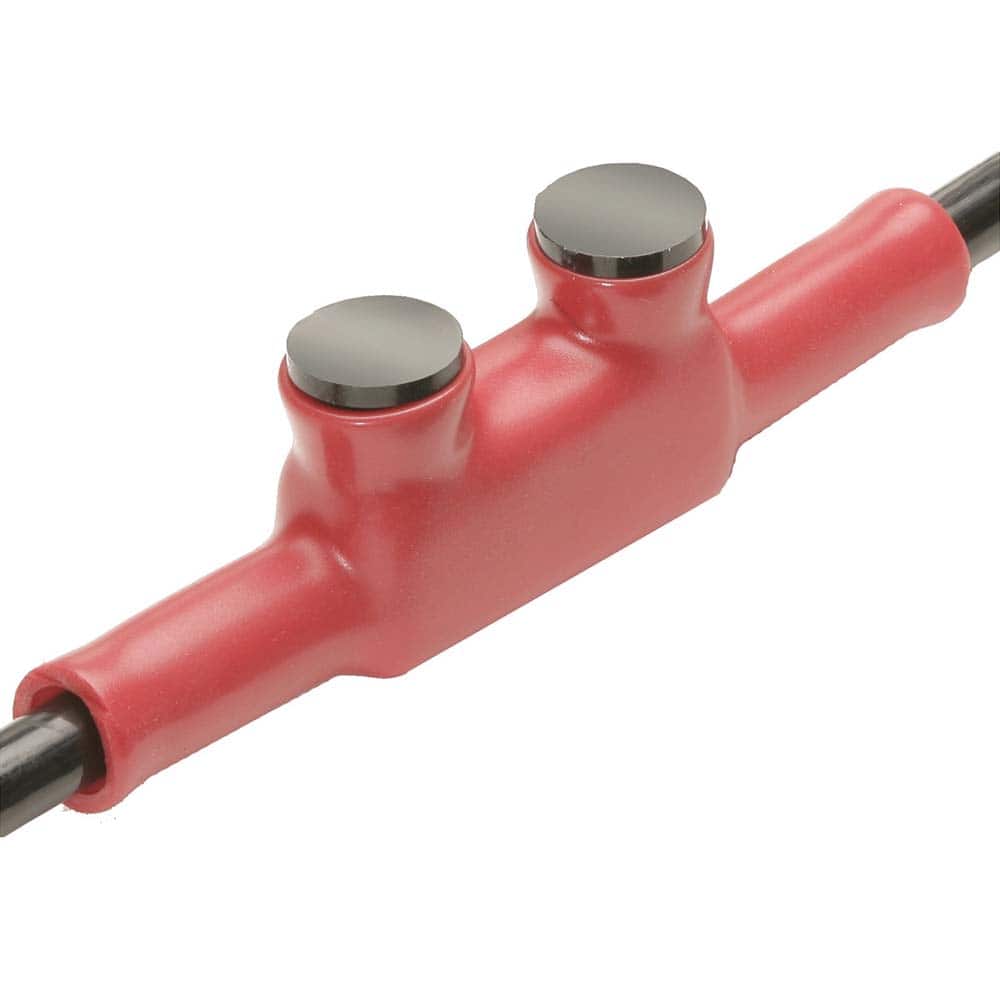

Burndy - Butt Splice Terminals; Insulation Type: Insulated ; Insulation Material: Plastisol ; Connection Type: Lug ; Compatible Wire Size (AWG): 4/0 ; Compatible Wire Size (kcmil): 250 ; Color: Red
Item #: 29227758
Brand: Burndy
Model #: BISR250DB
Product Specifications
Butt Splice Terminals; Insulation Type: Insulated ; Insulation Material: Plastisol ; Connection Type: Lug ; Compatible Wire Size (AWG): 4/0 ; Compatible Wire Size (kcmil): 250 ; Color: Red
| Insulation Type | Insulated |
| Insulation Material | Plastisol |
| Connection Type | Lug |
| Compatible Wire Size (AWG) | 4/0 |
| Compatible Wire Size (kcmil) | 250 |
| Color | Red |
| Overall Length (mm) | 170.18 |
| Overall Length (Inch) | 6.7 |
| Overall Length (Decimal Inch) | 6.7 |
| Number of Wire Entries | 2 |
| Contact Material | Aluminum |
| Standards Met | RoHS CM Compliant; UL 486A-486B; UL Listed Direct Burial |
| Additional Information | Sub Brand: UNITAP; Operating Voltage: 600 V; Temperature Rating: 90?C; Number of Screws: 2; Screw Type: Allen; Height: 2.17 in; Width: 1.18 in; Strip Length: 7/8 in; Screw Size: 5/8 in; Rated: Al/Cu Rated |
