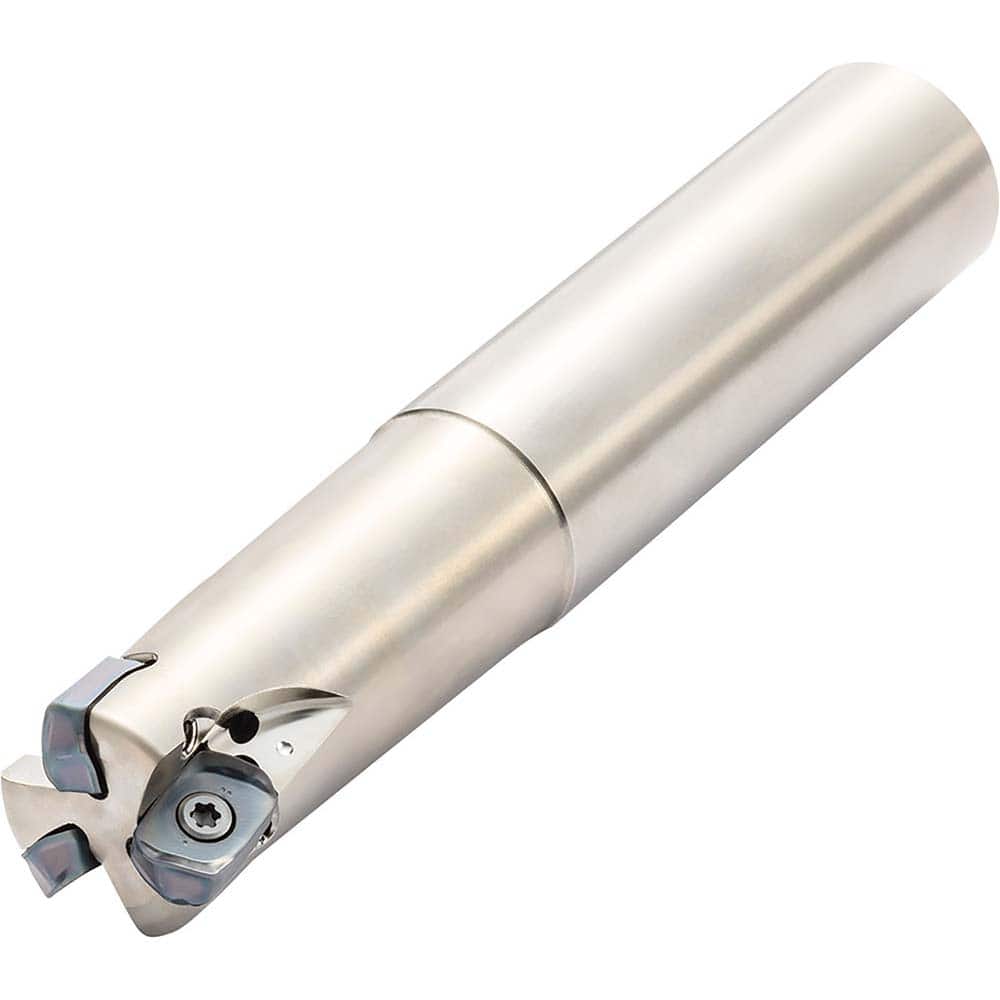

Indexable High-Feed End Mill: 1″ Cut Dia, 1″ Long Shank Uses 3 LOMU Inserts, 0.0984″ Max Depth, 7″ OAL, Through Coolant
Item #: 29304367
Brand: Kyocera
Model #: THN08666
Product Specifications
| Cutting Diameter (Decimal Inch) | 0.5669 |
| Maximum Cutting Diameter (Decimal Inch) | 1.0000 |
| Maximum Cutting Diameter (Inch) | 1 |
| Maximum Depth of Cut (Decimal Inch) | 0.0984 |
| Toolholder Style | MFH |
| Shank Type | Long |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Compatible Insert Style | LOMU |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 3 |
| Overall Length (Inch) | 7 |
| Series | MFH-Max Milling |
| Maximum RPM | 12500 |
| Head Length (Decimal Inch) | 4.0000 |
| Weldon Flat | No |
| End Mill Type | High Feed |
| Complete Insert Compatibility | LOMU040410ERGM |
| Lead Angle | 90 |
| Manufacturers Catalog Number | MFH1000S100043T7 |
| Number Of Flutes | 3 |
| End Mill Material | Steel |
| Coolant Through | Yes |
