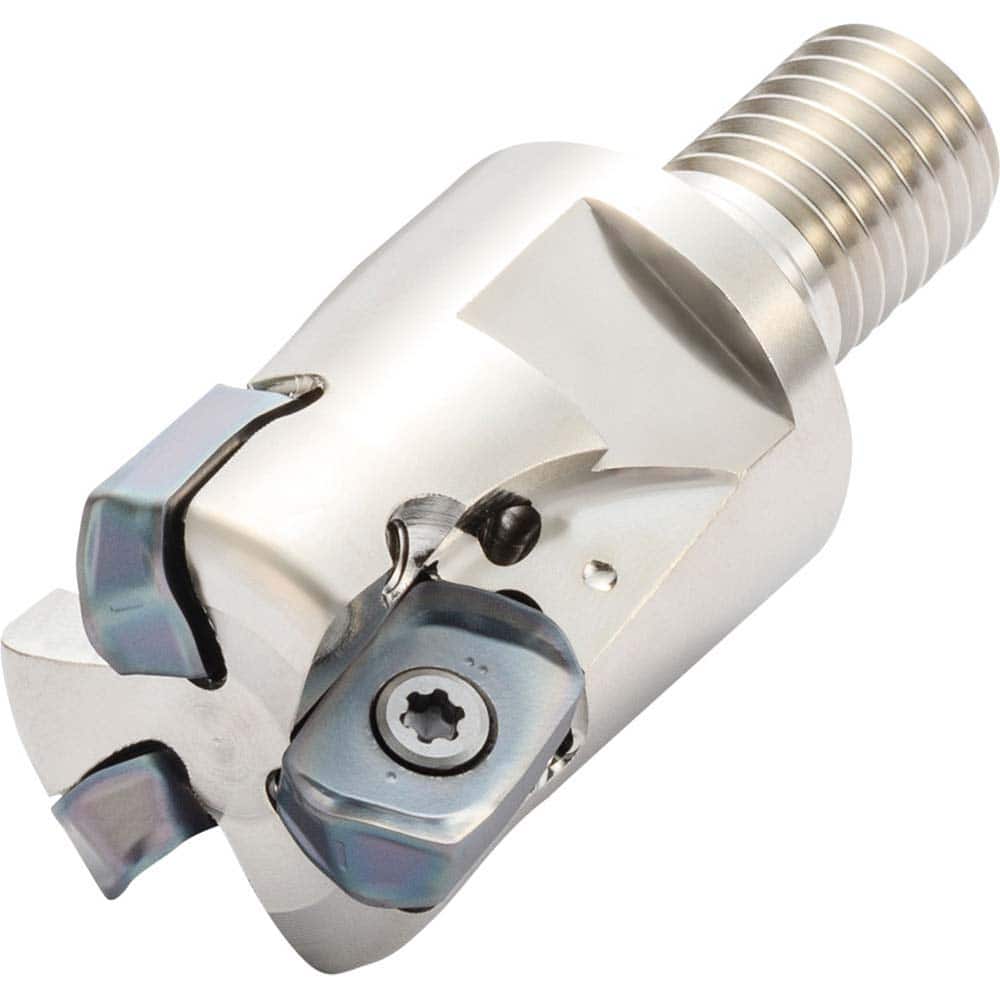

Indexable High-Feed End Mill: 1-1/4″ Cut Dia, 0.6693″ Modular Connection Shank Uses 5 LOMU Inserts, 0.0984″ Max Depth, 1.58″ OAL, Through Coolant
Item #: 29304391
Brand: Kyocera
Model #: THN08680
Product Specifications
| Cutting Diameter (Decimal Inch) | 0.8169 |
| Maximum Cutting Diameter (Decimal Inch) | 1.2500 |
| Maximum Cutting Diameter (Inch) | 1-1/4 |
| Maximum Depth of Cut (Decimal Inch) | 0.0984 |
| Toolholder Style | MFH |
| Shank Type | Modular Connection |
| Shank Diameter (Decimal Inch) | 0.6693 |
| Compatible Insert Style | LOMU |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 5 |
| Overall Length (Decimal Inch) | 1.5800 |
| Series | MFH-Max Milling |
| Maximum RPM | 11000 |
| Modular Connection Size | M16 |
| Weldon Flat | No |
| End Mill Type | High Feed |
| Complete Insert Compatibility | LOMU040410ERGM |
| Lead Angle | 90 |
| Manufacturers Catalog Number | MFH1250M16045T |
| Number Of Flutes | 5 |
| End Mill Material | Steel |
| Coolant Through | Yes |
