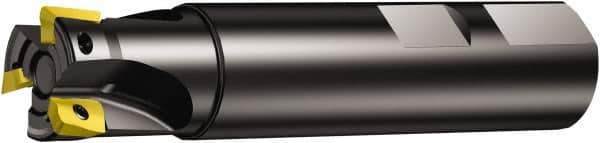

Sandvik Coromant - 5/8" Cut Diam, 10.0076mm Max Depth of Cut, 3/4" Shank Diam, 3-1/4" OAL, Indexable Square Shoulder Ramping End Mill - R390-11.. Inserts, Weldon Shank, 90° Lead Angle, Through Coolant, Series CoroMill 390
Item #: 30138192
Brand: Sandvik Coromant
Model #: 5739427
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.6250 |
| Cutting Diameter (Inch) | 5/8 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Overall Length/Projection (Inch) | 3-1/4 |
| Overall Length/Projection (Decimal Inch) | 3.2500 |
| Lead Angle | 90 |
| Series | CoroMill 390 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 10.01 |
| Maximum Depth of Cut (Decimal Inch) | 0.3940 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | Ramping End Mill |
| Cutter Style | CoroMill 390 |
| Number of Flutes | 2 |
| Minimum Cutting Diameter (Inch) | 5/8 |
| Minimum Cutting Diameter (Decimal Inch) | 0.6250 |
| Head Length (mm) | 25.91 |
| Head Length (Decimal Inch) | 1.0200 |
| Weldon Flat | Yes |
| Insert Compatibility | R390-11.. |
| Shank Length (Decimal Inch) | 2.2300 |
| Maximum RPM | 41800 |
| Toolholder Material | Steel |
