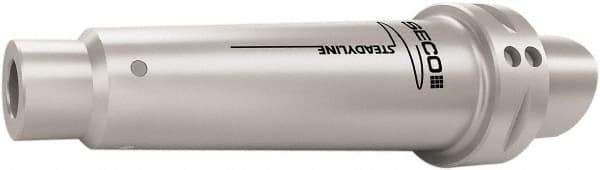

Seco - Seco-Capto 30mm Taper Shank Milling Tip Insert Holder & Shank - 9-1/4" Projection, 1.18" Neck Diam, M16 Neck Thread, 30mm Nose Diam, 273mm OAL, Alloy Steel Tool Holder
Item #: 30140495
Brand: Seco
Model #: 92204
Exact Tooling IR#: 04
Features and Benefits
Taper shanks maintain balance and rigidity during high speeds and heavy-duty applications. They have smaller diameters than straight shanks.
| Product Specifications | |
|---|---|
| Series | Seco-Capto |
| Shank Type | Taper Shank |
| Shank Diameter (mm) | 30.00 |
| Projection (mm) | 235.00 |
| Projection (Inch) | 9.2520 |
| Projection (Decimal Inch) | 9.2520 |
| Neck Diameter (Decimal Inch) | 1.1800 |
| Neck Thread Size | M16 |
| Nose Diameter (mm) | 30.00 |
| Nose Diameter (Decimal Inch) | 1.1800 |
| Toolholder Material | Alloy Steel |
| Overall Length (mm) | 273.00 |
| Overall Length (Decimal Inch) | 10.7480 |
| Through Coolant | Through Coolant |
| Weldon Flat | No |
