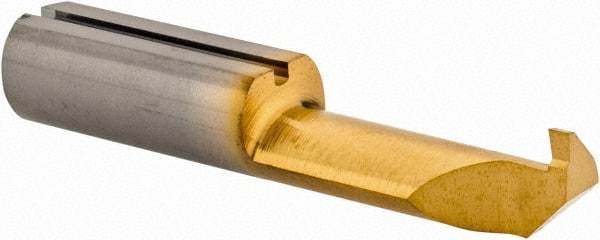

Iscar - 1mm Groove Width, 6mm Min Hole Diam, 14mm Max Hole Depth, Grooving Grooving Tool - 1.8mm Projection, 0.63" Shank Length, 30mm OAL, Solid Carbide, TiN Finish
Item #: 30206478
Brand: Iscar
Model #: 6411174
Exact Tooling IR#: 04
Features and Benefits
Grooving tools are used for recessing or undercutting a workpiece.
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics, and other tough-to-machine materials.
Titanium nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Grooving Tool Type | Grooving |
| Material | Solid Carbide |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Shank Diameter (mm) | 6.00 |
| Groove Width (Decimal Inch) | 0.0394 |
| Groove Width (mm) | 1.00 |
| Projection (Decimal Inch) | 0.0709 |
| Projection (mm) | 1.80 |
| Minimum Hole Diameter (Decimal Inch) | 0.2362 |
| Minimum Hole Diameter (mm) | 6.00 |
| Maximum Hole Depth (Decimal Inch) | 0.5512 |
| Maximum Hole Depth (mm) | 14.00 |
| Overall Length (Decimal Inch) | 1.1811 |
| Overall Length (mm) | 30.00 |
| Finish/Coating | TiN |
| Shank Length (Decimal Inch) | 0.6300 |
| Manufacturer Grade | IC228 |
