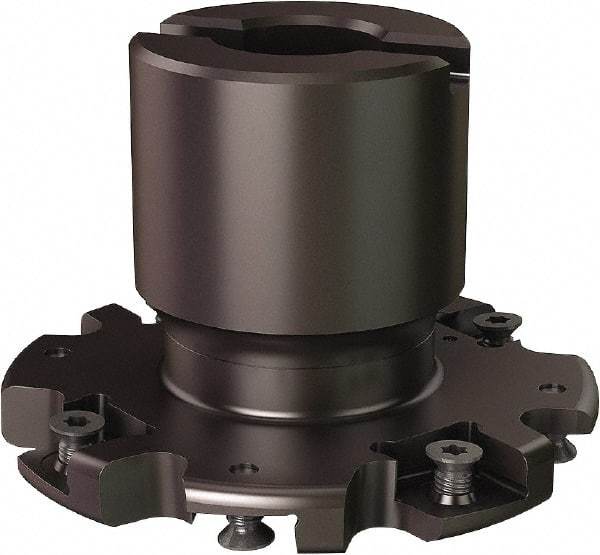

Seco - Shell Mount Connection, 0.8071" Cutting Width, 0.807" Depth of Cut, 3" Cutter Diam, 3/4" Hole Diam, 8 Tooth Indexable Slotting Cutter - R335.19 Toolholder, 335.19-1205 Insert
Item #: 30207666
Brand: Seco
Model #: 84184
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount |
| Cutting Width (mm) | 20.50 |
| Cutting Width (Decimal Inch) | 0.8071 |
| Maximum Depth of Cut (mm) | 0.03 |
| Maximum Depth of Cut (Decimal Inch) | 0.8070 |
| Cutter Diameter (mm) | 76.20 |
| Cutter Diameter (Decimal Inch) | 3.0000 |
| Cutter Diameter (Inch) | 3 |
| Hole Diameter (mm) | 19.05 |
| Hole Diameter (Inch) | 3/4 |
| Hole Diameter (Decimal Inch) | 0.7500 |
| Number of Teeth | 8 |
| Toolholder Style | R335.19 |
| Series | R335.19 |
| Insert Style | 335.19-1205 |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 8 |
| Maximum RPM | 7400 |
| Hub Diameter (mm) | 40.00 |
| Hub Diameter (Decimal Inch) | 1.5748 |
| Keyway Width (Inch) | 0.3228 |
| Keyway Width (Decimal Inch) | 0.3228 |
| Keyway Width (mm) | 8.20 |
| Radius | No |
| Rake | Negative |
