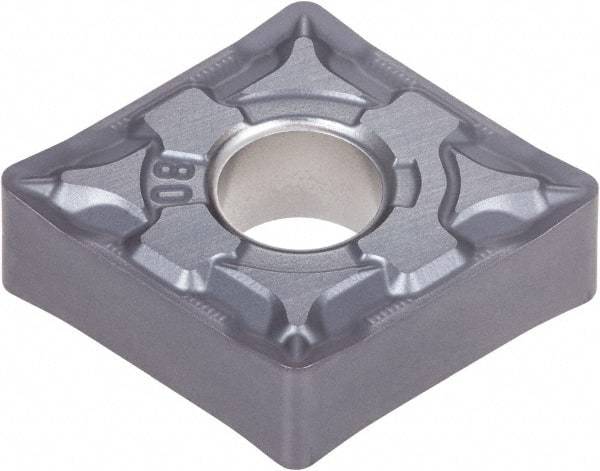

Tungaloy - CNMG542 HRM Grade AH8015 Carbide Turning Insert - AlTiN Finish, 80° Diamond, 5/8" Inscr Circle, 1/4" Thick, 1/32" Corner Radius
Item #: 30286264
Brand: Tungaloy
Model #: 6741644
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CNMG |
| Insert Size | 542 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Inscribed Circle (Inch) | 5/8 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Manufacturer's Grade | AH8015 |
| Coating | AlTiN |
| Material Grade | S10 |
| Chip Breaker | HRM |
| Hole Diameter (mm) | 6.35 |
| Hole Diameter (Decimal Inch) | 0.2500 |
| Rake Angle | 0 |
| Relief Angle | 0 |
| Coating Process | PVD |
| Included Angle | 80 |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
