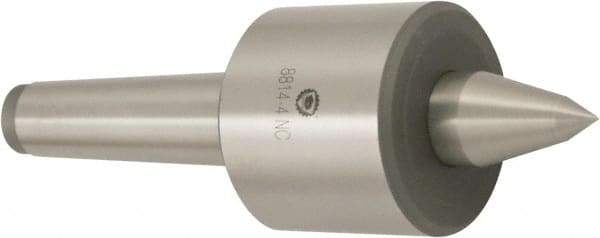

Bison - MT4 Morse Taper Shank, 70mm Head Diam, Live Center - 7,000 Max RPM, 28mm Point Diam, 1.93" Point Len, 2,205 Lb Max Workpc, Long Point
Item #: 30311435
Brand: Bison
Model #: 7-566-004
Exact Tooling IR#: 04
Features and Benefits
Long points are used for shaft work, parts with large diameters and where tool clearance is a priority.
| Product Specifications | |
|---|---|
| Shank Type | Morse Taper |
| Taper Size | MT4 |
| Maximum Workpiece Weight (Lb.) | 2205.00 |
| Maximum Workpiece Weight (kg) | 1000.00 |
| Point Style | Long |
| Point Diameter (mm) | 28.00 |
| Point Diameter (Decimal Inch) | 1.1023 |
| Tip Diameter (mm) | 14.00 |
| Tip Diameter (Decimal Inch) | 0.5511 |
| Point Length (Decimal Inch) | 1.9300 |
| Accuracy (Decimal Inch) | 0.000100 |
| Head Diameter (mm) | 70.00 |
| Head Diameter (Decimal Inch) | 2.7500 |
| Maximum RPM | 7000 |
