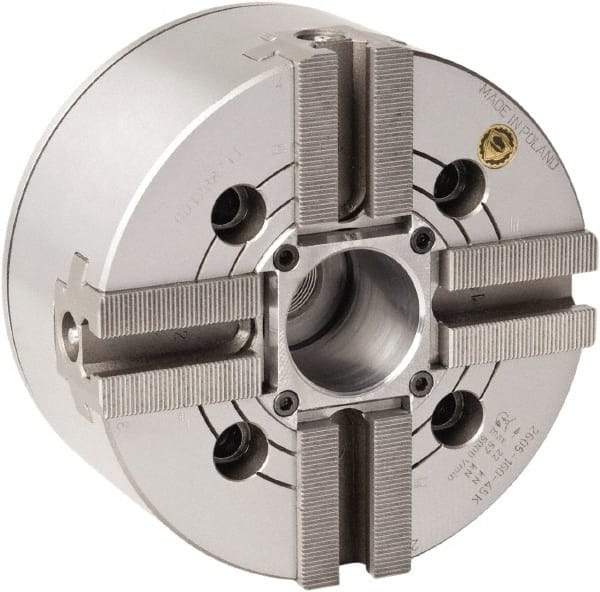

Bison - 4 Jaw, 10" Chuck Diam, Plain Back Mount, 75mm Through Hole Diam, Drawtube Hydraulic Power Lathe Chuck - 1.5mm x 60° Serrated Jaw Interface, 0.8661 to 9.8031" Jaw Capacity, 3,600 RPM, High Speed Steel Body
Item #: 30521769
Brand: Bison
Model #: 7-783-1000
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Chuck Diameter (mm) | 254.00 |
| Chuck Diameter (Inch) | 10 |
| Chuck Diameter (Decimal Inch) | 10.0000 |
| Number of Jaws | 4 |
| Mount | Plain Back |
| Through-Hole Diameter (mm) | 75.00 |
| Through-Hole Diameter (Decimal Inch) | 2.9500 |
| Chuck Actuation Style | Drawtube |
| Operation Type | Hydraulic |
| Jaw Interface Type | 1.5mm x 60 Serrated |
| Minimum Jaw Capacity (Decimal Inch) | 0.8661 |
| Maximum Jaw Capacity (Decimal Inch) | 9.8031 |
| Jaw Stroke Diameter (mm) | 12.00 |
| Jaw Stroke Diameter (Decimal Inch) | 0.4720 |
| Maximum Drawbar Pulling Force (kN) | 43.00 |
| Maximum Drawbar Pulling Force (Lb.) | 9666.00 |
| Maximum Static Gripping Force (kN) | 111.00 |
| Maximum Static Gripping Force (lbf) | 24953.00 |
| Moment of Inertia (lb/sq ft) | 7.47 |
| Maximum RPM | 3600 |
| Body Material | High Speed Steel |
